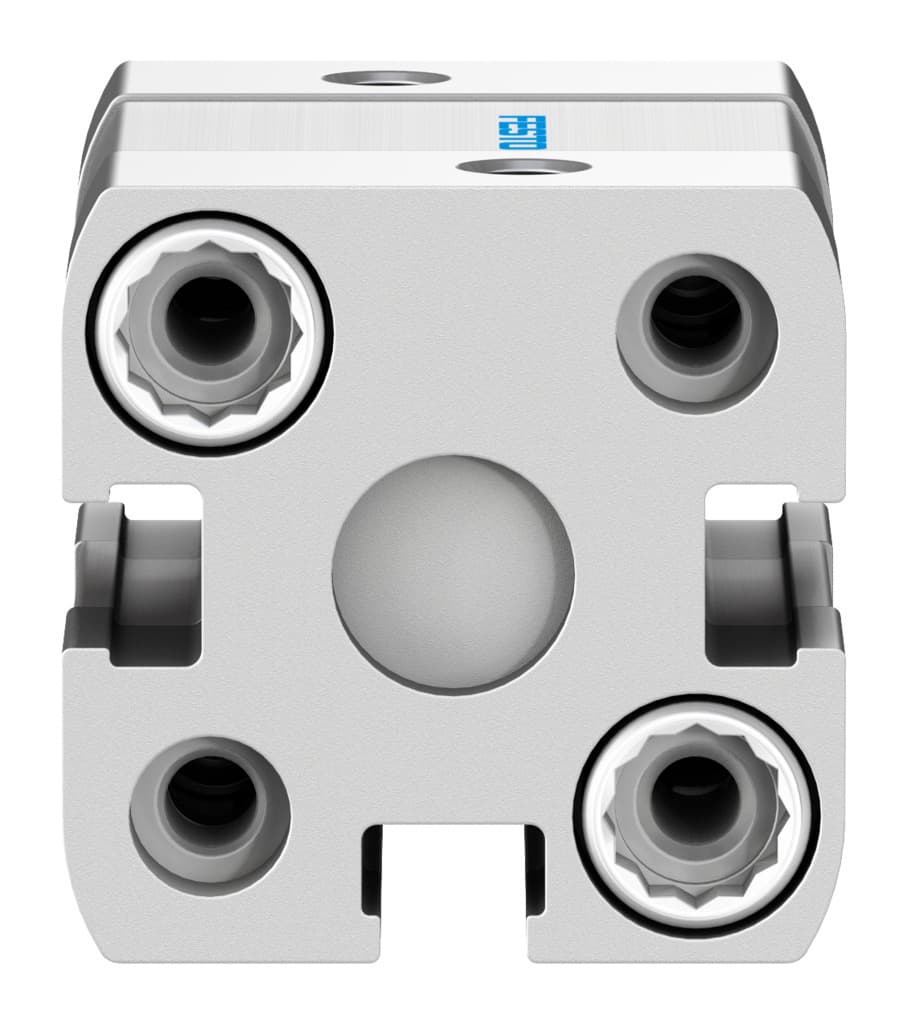

adn-16-5-i-p-a
Product ID:10009
Updated: 2026/4/4
Key Features
- 1Maximize space efficiency with a compact footprint ideal for constrained layouts. 2、Enable versatile double-acting operation for both extension and retraction strokes. 3、Reduce wear and ensure smooth motion via integrated elastic cushioning at both ends. 4、Install flexibly in any mounting position to simplify system design. 5、Guarantee reliable performance meeting ISO 21287 quality standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 16 mm |
| Piston rod thread | M4 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.15J | Theoretical force at 6 bar, retracting | 90N |
| Theoretical force at 6 bar, advancing | 121N | Moving mass | 16g |
| Product weight | 79g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536226 |
Specifications may be subject to change without notice
