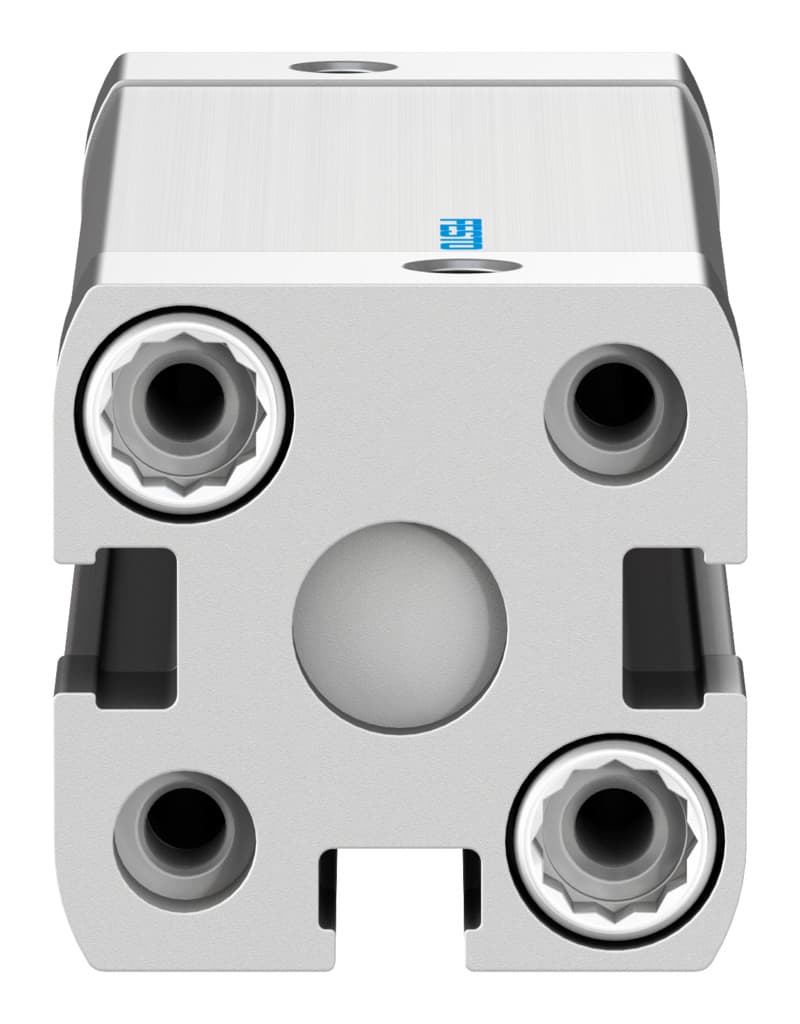

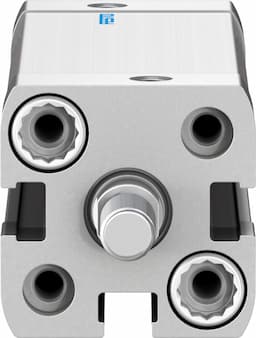

adn-16-60-a-p-a
Product ID:266
Updated: 2026/4/3
Key Features
- 1Achieve precise actuation with a 60mm stroke and 16mm piston diameter. 2、Reduce wear using integrated elastic cushioning rings at both ends. 3、Simplify installation with the self-aligning rod coupler feature. 4、Operate reliably across a wide -20°C to 80°C temperature range. 5、Ensure compliance and interoperability by meeting ISO 21287 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 60mm | Piston diameter | 16 mm |
| Piston rod thread | M6 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.15J | Theoretical force at 6 bar, retracting | 90N |
| Theoretical force at 6 bar, advancing | 121N | Moving mass | 42g |
| Product weight | 159g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8178763 |
Specifications may be subject to change without notice
