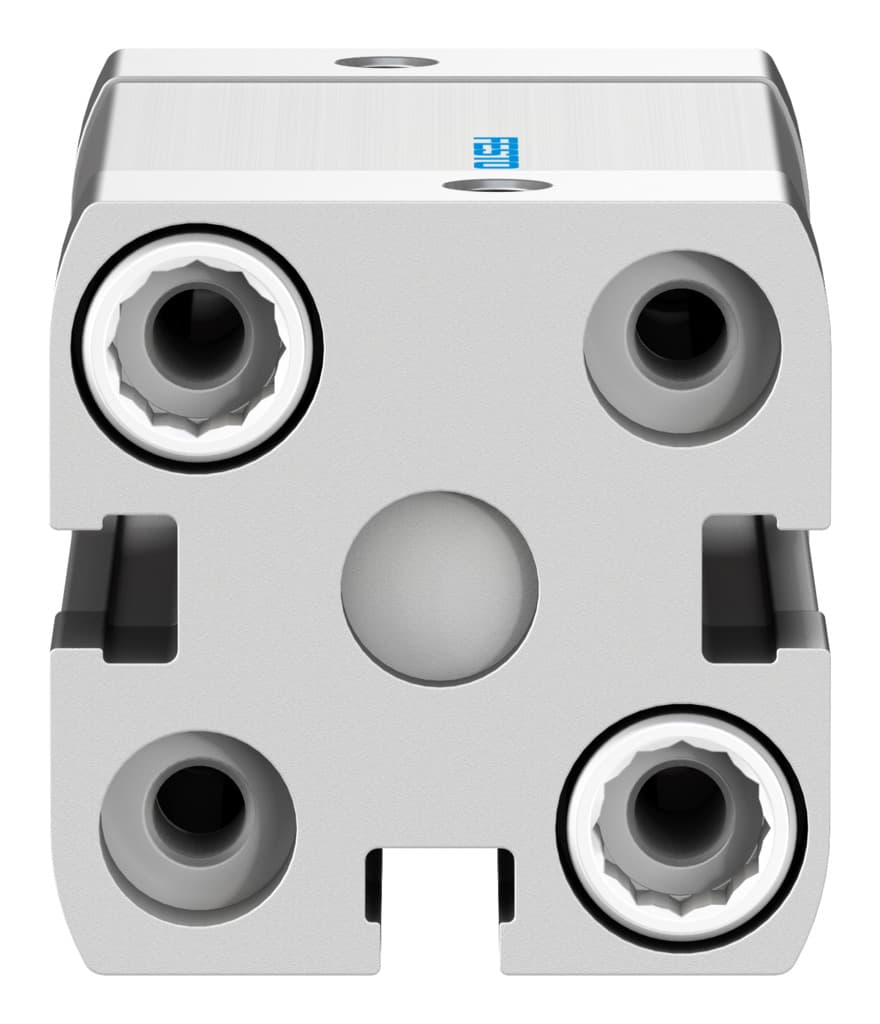

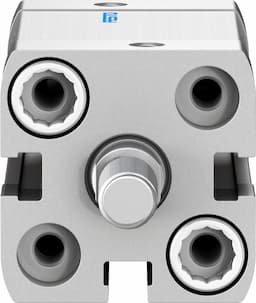

adn-20-25-a-pps-a
Product ID:14561
Updated: 2026/4/3
Key Features
- 1Maximize space with a 20 mm piston and 25 mm stroke. 2、Reduce wear using self-adjusting end-position cushioning. 3、Install flexibly in any mounting position. 4、Meet ISO 21287 standards with CRC 2 corrosion resistance. 5、Enable precise detection via proximity sensor compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 20 mm |
| Piston rod thread | M8 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.2J | Cushioning length | 3mm |
| Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 188N |
| Moving mass | 49g | Product weight | 183g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 577169 |
Specifications may be subject to change without notice
