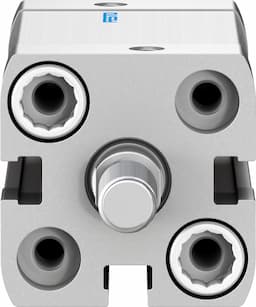

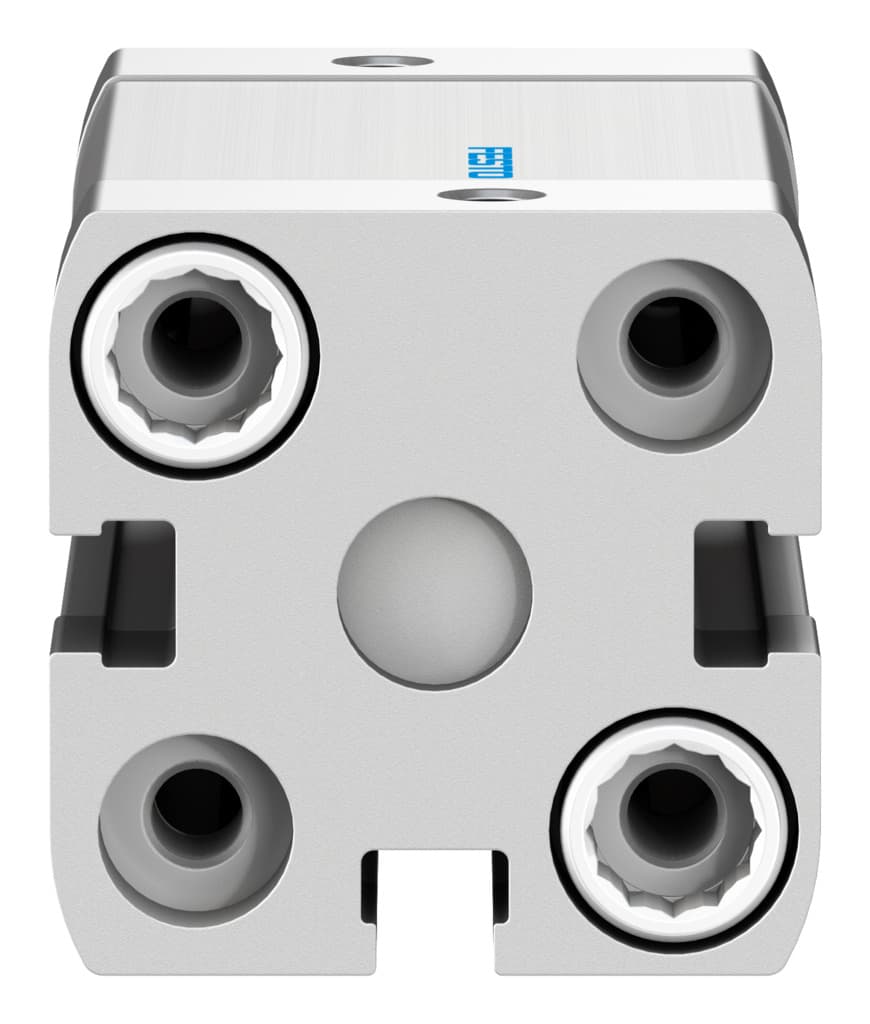

adn-20-35-a-p-a
Product ID:258
Updated: 2026/4/3
Key Features
- 1Achieve precise motion with a 35mm stroke and 20mm piston diameter. 2、Ensure smooth operation using elastic cushioning rings at both ends. 3、Meet ISO 21287 standards for reliable double-acting performance. 4、Benefit from corrosion resistance (CRC 2) and cleanroom compatibility. 5、Rely on durable high-alloy steel and aluminum alloy construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 35mm | Piston diameter | 20 mm |
| Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.2J | Theoretical force at 6 bar, retracting | 141N |
| Theoretical force at 6 bar, advancing | 188N | Moving mass | 54g |
| Product weight | 205g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8178859 |
Specifications may be subject to change without notice
