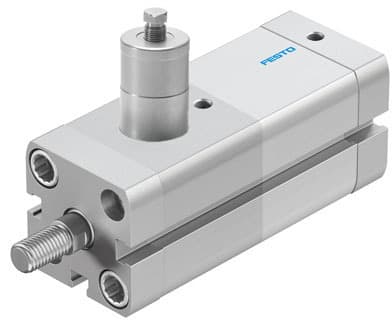

adn-20- -kp-
Product ID:11577
Updated: 2026/7/13
Key Features
- 1Save up to 50% installation space versus ISO cylinders.
- 2Mount via through-hole or internal thread for flexibility.
- 3Integrate magnetic piston for precise position sensing.
- 4Utilize elastic cushioning for smooth operation and reduced wear.
- 5Select from various strokes and configurations for customization.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 300mm | Piston diameter | 20 mm |
| Piston rod thread | M8 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Clamping type with active direction | Both sides | Piston rod end | Internal thread |
| Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
| Symbol | 00991260 | Variants | Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Impact energy in the end positions | 0.2J |
| Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 188N |
| Moving mass at 0?mm stroke | 53g | Additional moving mass per 10?mm stroke | 6g |
| Basic weight with 0?mm stroke | 282g | Additional weight per 10?mm stroke | 22g |
| Type of mounting | With internal thread With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy Smooth anodized |
| Manufacturer ID | 548206 |
Specifications may be subject to change without notice
