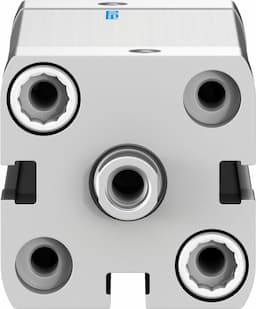

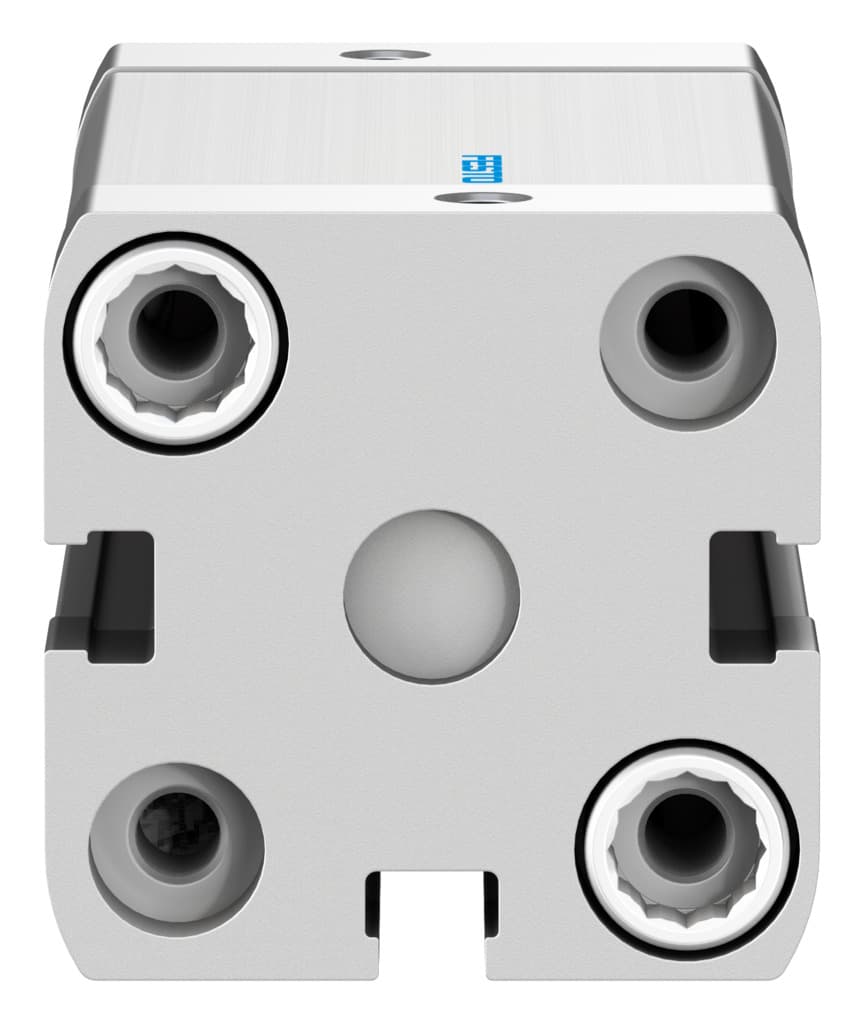

adn-25-40-i-pps-a
Product ID:14571
Updated: 2026/4/3
Key Features
- 1Save up to 50% of installation space versus standard cylinders. 2、Ensure smooth operation and extend service life significantly. 3、Suit applications requiring precise position detection. 4、Provide balanced movement in both directions for stability. 5、Meet international standards for pneumatic cylinders.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 25 mm |
| Piston rod thread | M6 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.3J | Cushioning length | 3.5mm |
| Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
| Moving mass | 56g | Product weight | 276g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 577179 |
