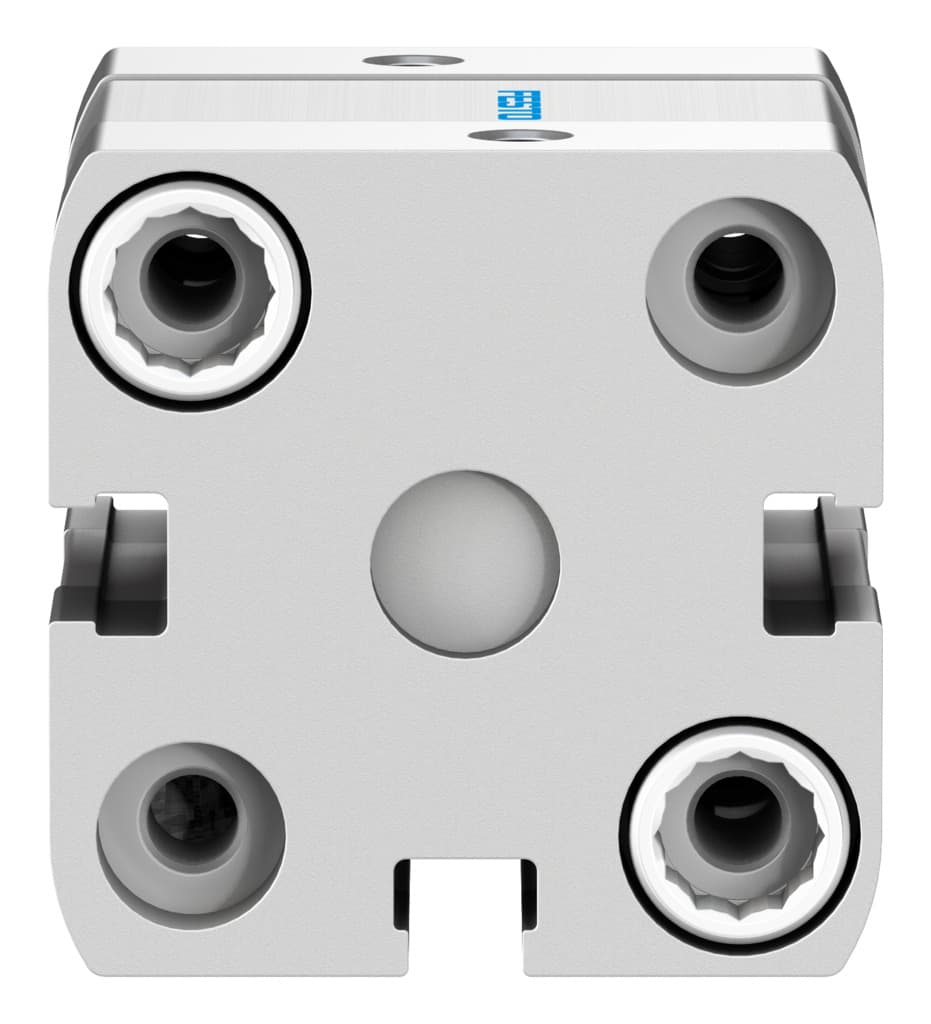

adn-25-5-a-p-a
Product ID:10034
Updated: 2026/4/4
Key Features
- 1Achieve precise 5mm stroke movement in confined automation spaces. 2、Utilize a robust 25mm piston diameter with M8 rod thread for reliability. 3、Reduce impact and wear with elastic cushioning rings at both ends. 4、Operate in both extension and retraction modes for versatile applications. 5、Ensure performance in sensitive settings with ISO 21287 and cleanroom compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 25 mm |
| Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.3J | Theoretical force at 6 bar, retracting | 247N |
| Theoretical force at 6 bar, advancing | 295N | Moving mass | 44g |
| Product weight | 194g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536251 |
