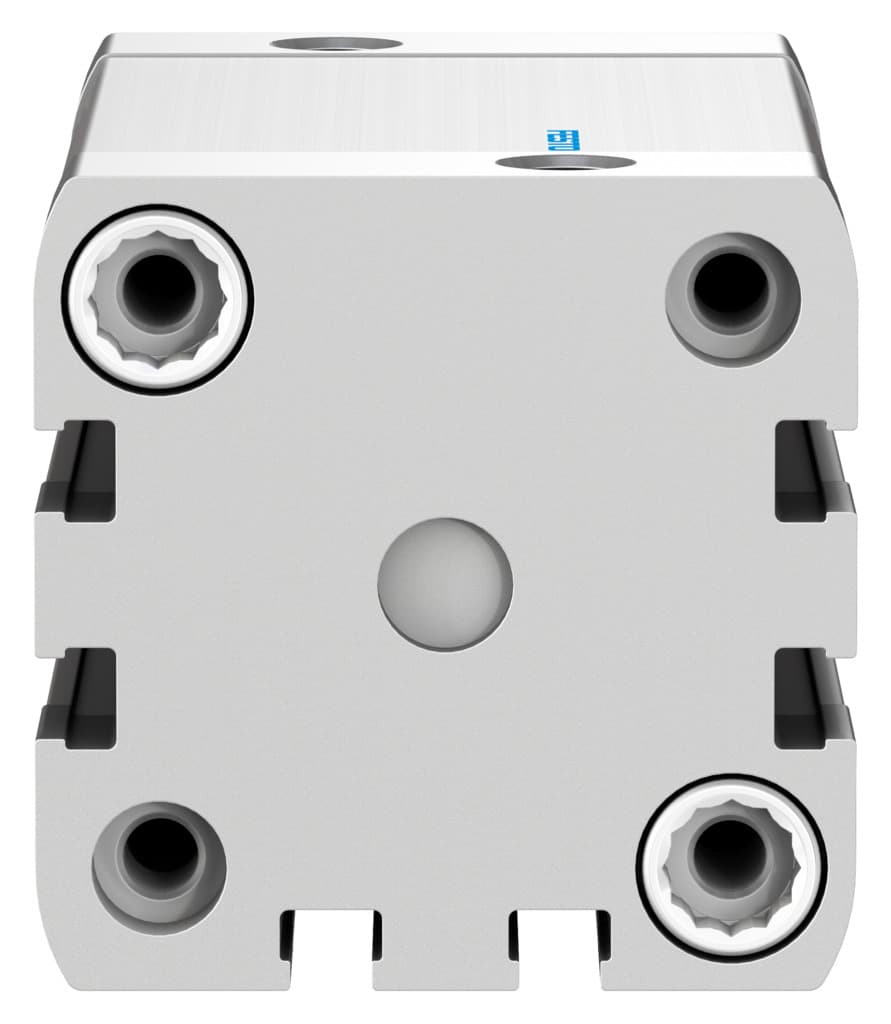

adn-40-50-i-p-a
Product ID:10089
Updated: 2026/4/4
Key Features
- 1Maximize space efficiency with a compact 50 mm stroke and 40 mm piston diameter design. 2、Ensure smooth operation and reduce wear using elastic cushioning rings at both ends. 3、Install the cylinder in any position for flexible system integration. 4、Handle diverse applications with a 0.4 to 10 bar operating pressure range. 5、Rely on durable wrought aluminum alloy and TPE-U seals for long-lasting performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 50mm | Piston diameter | 40 mm |
| Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, retracting | 686N |
| Theoretical force at 6 bar, advancing | 754N | Moving mass | 90g |
| Product weight | 495g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 536306 |
Specifications may be subject to change without notice
