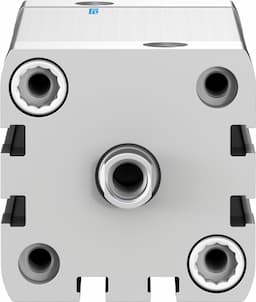

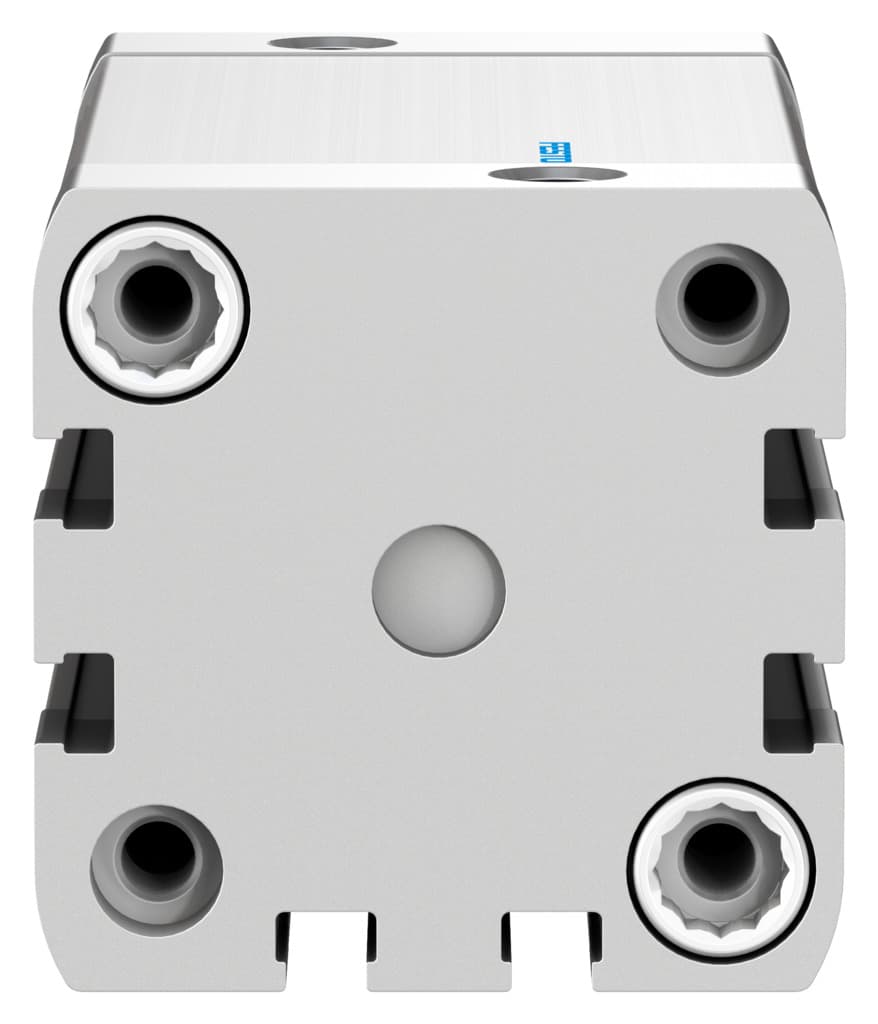

adn-40-70-i-p-a
Product ID:238
Updated: 2026/4/3
Key Features
- 1Achieve precise motion with a 40 mm bore and 70 mm stroke. 2、Reduce impact wear using elastic cushioning at both ends. 3、Ensure system reliability with ISO 21287 standard compliance. 4、Connect easily via the M8 piston rod thread. 5、Operate versatilely within 0.06 to 1 MPa pressure range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 70mm | Piston diameter | 40 mm |
| Piston rod thread | M8 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -20°C 80°C |
| Impact energy in the end positions | 0.7J | Theoretical force at 6 bar, retracting | 686N |
| Theoretical force at 6 bar, advancing | 754N | Moving mass | 102g |
| Product weight | 565g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 8179034 |
Specifications may be subject to change without notice
