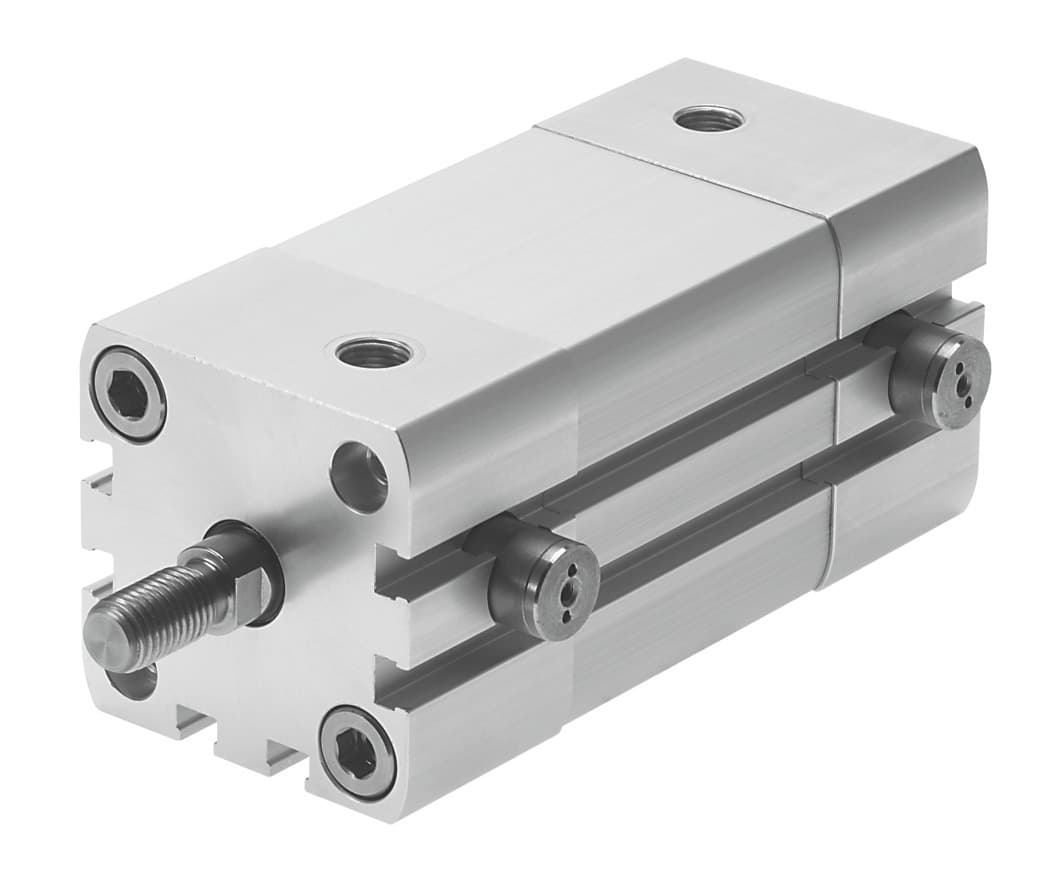

adn-40- -el-
Product ID:11588
Updated: 2026/7/13
Key Features
- 1Save up to 50% installation space with a compact cylinder design.
- 2Absorb residual energy using elastic cushioning rings for heavy loads.
- 3Enable contactless position sensing via magnetic piston rods.
- 4Install easily with multiple mounting options like female threads.
- 5Ensure durability with high-alloy steel rods and aluminum barrels.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 400mm | Piston diameter | 40 mm |
| Piston rod thread | M10x1.25 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | Internal thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Variants | With end-position locking at both ends With rear end-position locking With front end-position locking Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
| Operating pressure | 2.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.7J |
| Theoretical force at 6 bar, retracting | 686N | Theoretical force at 6 bar, advancing | 754N |
| Additional moving mass per 10?mm stroke | 9g | Type of mounting | With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy Smooth anodized | Manufacturer ID | 548217 |
