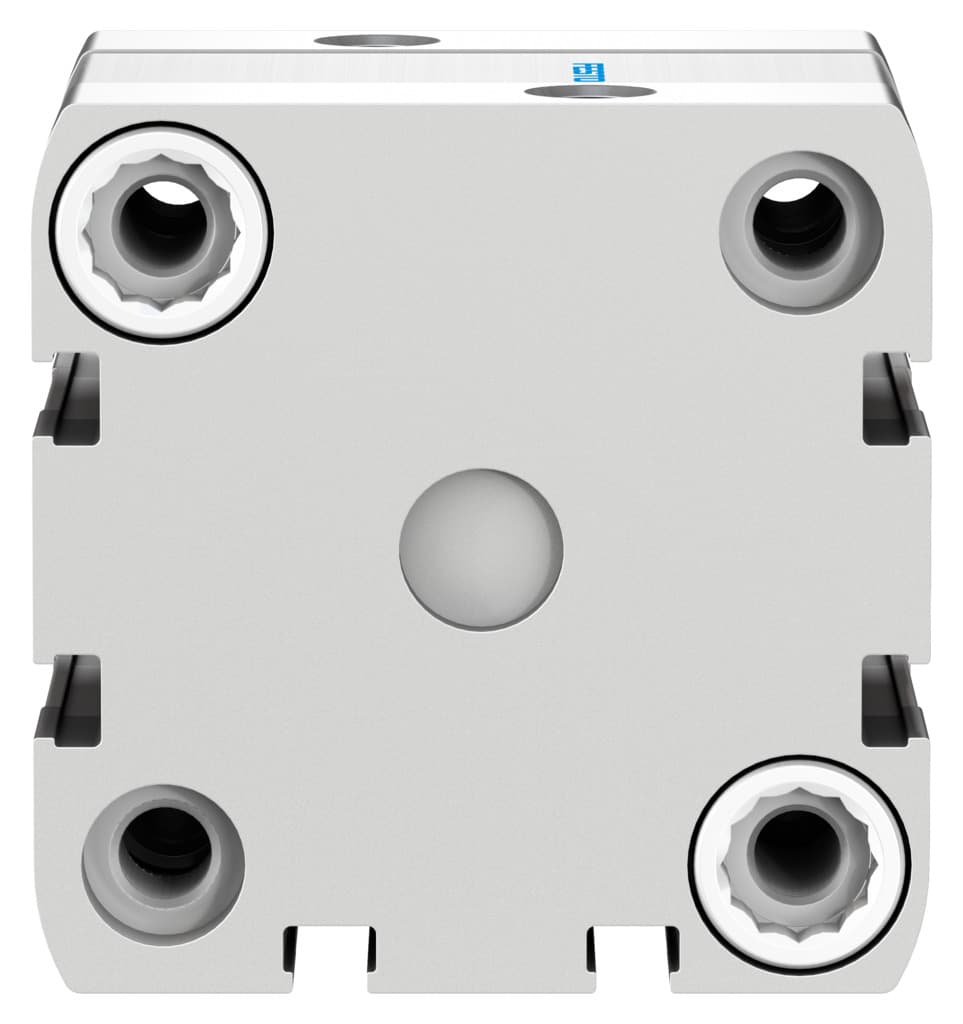

adn-50-10-a-pps-a
Product ID:13709
Updated: 2026/4/4
Key Features
- 1Save up to 50% installation space versus standard cylinders. 2、Reduce noise and vibration to prolong service life. 3、Meet ISO 21287 for guaranteed high-performance compliance. 4、Apply air for precise linear advancing and retracting motion. 5、Enable contactless position detection with magnetic piston rods.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 50 mm |
| Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00992970 | Variants | Piston rod at one end |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.8J |
| Cushioning length | 6mm | Theoretical force at 6 bar, retracting | 1057N |
| Theoretical force at 6 bar, advancing | 1178N | Moving mass | 196g |
| Product weight | 599g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 572691 |
