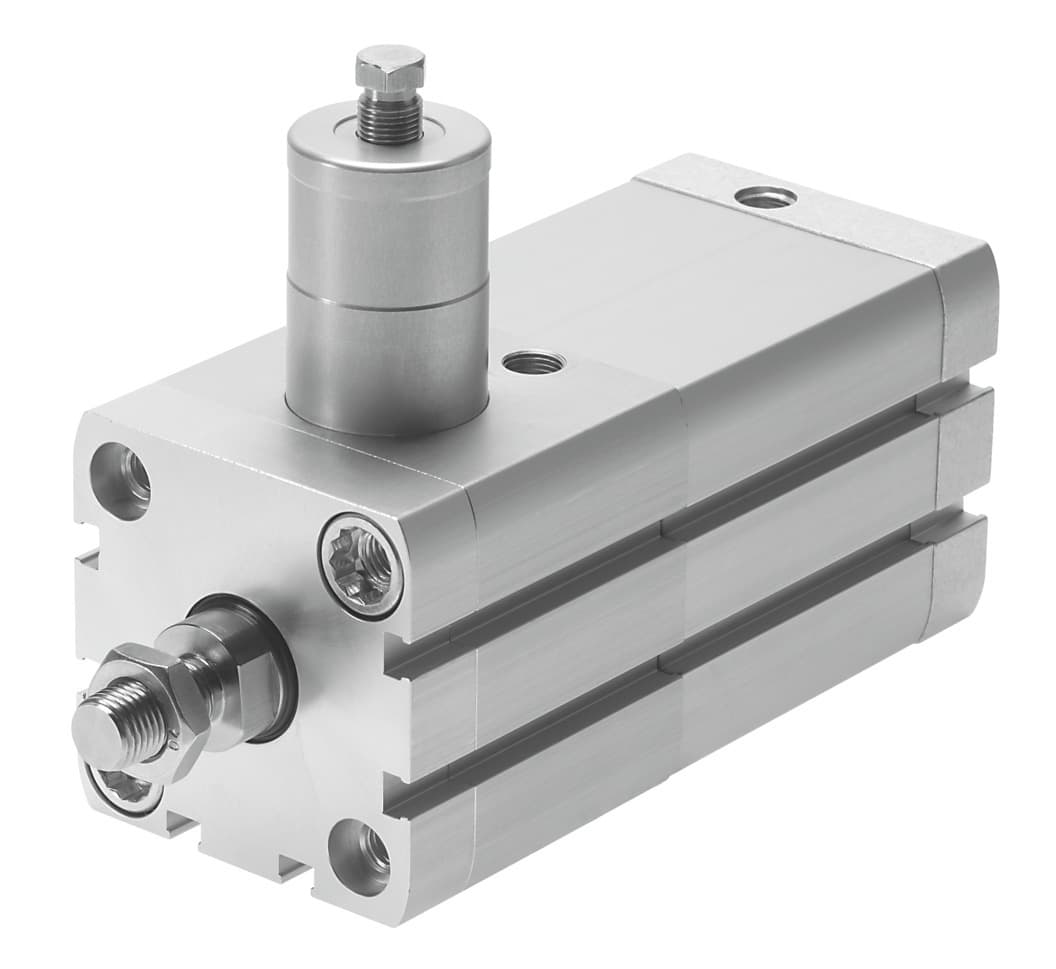

adn-50- -kp-
Product ID:11581
Updated: 2026/4/3
Key Features
- 1Engineer high-performance motion with a 50mm piston diameter. 2、Minimize noise and vibration using adjustable pneumatic cushioning at both ends. 3、Enable precise contactless position detection via magnetic piston rods. 4、Save valuable installation space with a compact and versatile cylinder design. 5、Ensure reliable operation under diverse conditions with ISO-standard compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 400mm | Piston diameter | 50 mm |
| Piston rod thread | M12x1.25 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Clamping type with active direction | Both sides | Piston rod end | Internal thread |
| Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
| Symbol | 00991260 | Variants | Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10°C 80°C | Impact energy in the end positions | 1J |
| Theoretical force at 6 bar, retracting | 990N | Theoretical force at 6 bar, advancing | 1178N |
| Moving mass at 0?mm stroke | 296g | Additional moving mass per 10?mm stroke | 25g |
| Basic weight with 0?mm stroke | 1268g | Additional weight per 10?mm stroke | 60g |
| Type of mounting | With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy Smooth anodized |
| Manufacturer ID | 548210 |
Specifications may be subject to change without notice
