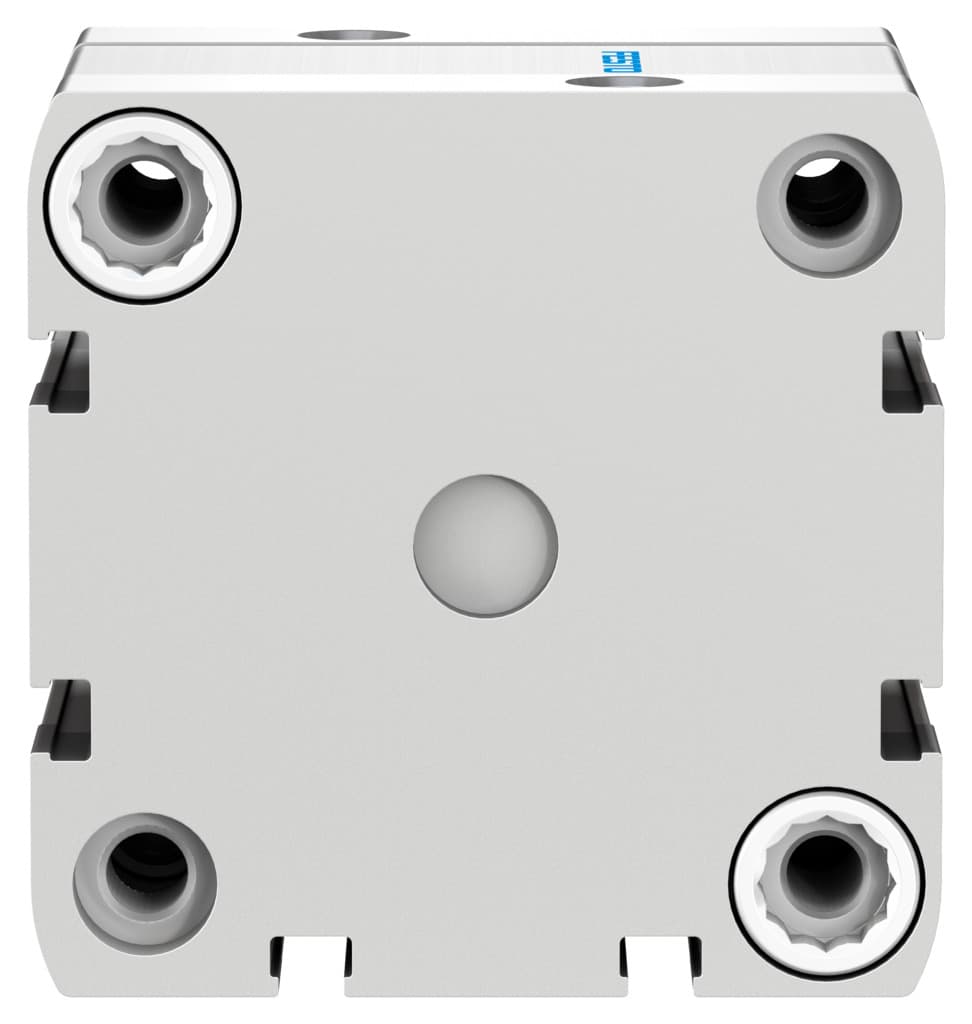

adn-63-10-a-pps-a
Product ID:13726
Updated: 2026/4/4
Key Features
- 1Ensure smooth operation with self-adjusting pneumatic end-position cushioning. 2、Enhance control via double-acting operation for simultaneous extension and retraction. 3、Fit space-constrained applications with a compact 10 mm stroke design. 4、Meet ISO 21287 for high corrosion resistance in harsh environments. 5、Install flexibly using through-hole, female thread, or accessory mounting options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 63 mm |
| Piston rod thread | M12x1.25 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00992970 | Variants | Piston rod at one end |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 4.8J |
| Cushioning length | 7mm | Theoretical force at 6 bar, retracting | 1750N |
| Theoretical force at 6 bar, advancing | 1870N | Moving mass | 256g |
| Product weight | 832g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 572709 |
