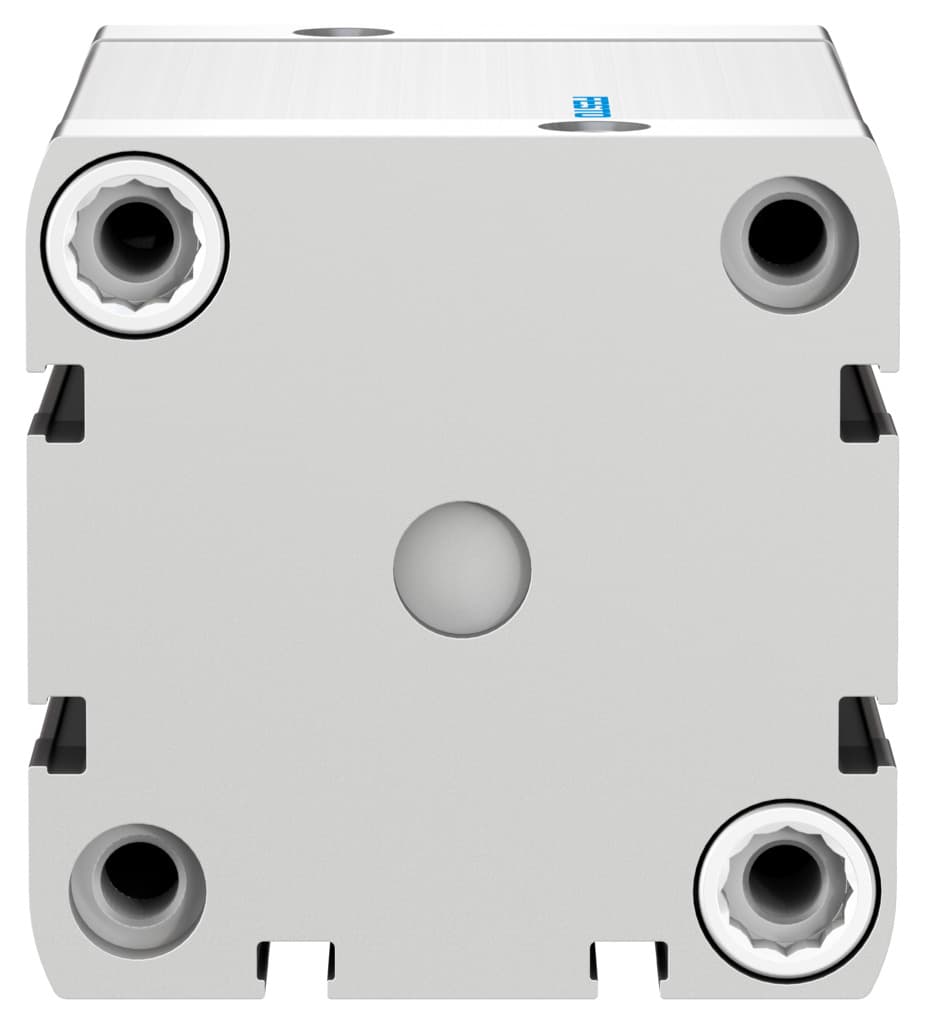

adn-63-70-a-p-a
Product ID:283
Updated: 2026/4/3
Key Features
- 1Optimize space with the compact ADN-63-70-A-P-A cylinder for high-performance pneumatic tasks. 2、Mount the cylinder in any position, adhering to ISO 21287 for universal compatibility. 3、Reduce impact and wear using integrated elastic cushioning rings at both ends. 4、Enable versatile double-acting operation for both retracting and advancing motions. 5、Ensure reliable performance with compressed air per ISO 8573-1:2010 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 70mm | Piston diameter | 63 mm |
| Piston rod thread | M12x1.25 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.3J |
| Theoretical force at 6 bar, retracting | 1750N | Theoretical force at 6 bar, advancing | 1870N |
| Moving mass | 335g | Product weight | 1172g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 8178284 |
Specifications may be subject to change without notice
