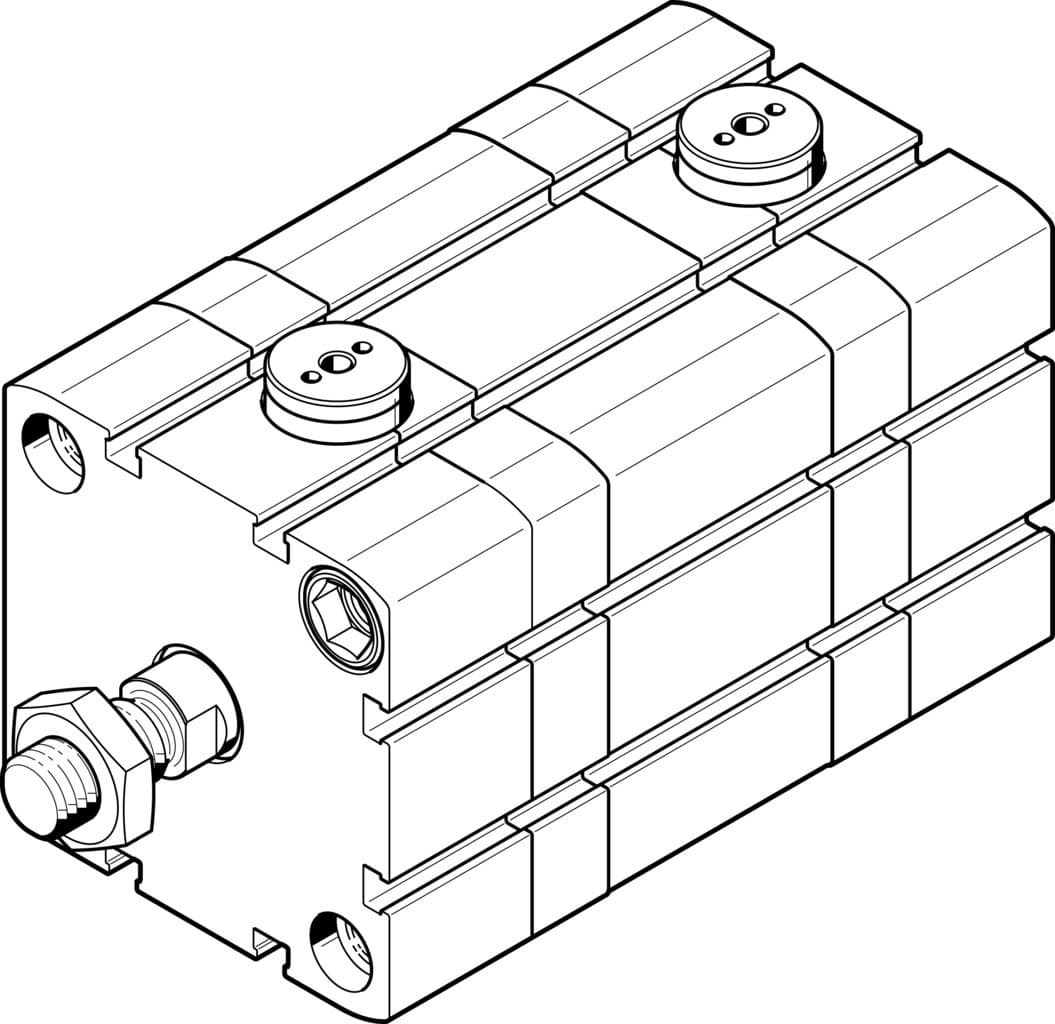

adn-63- -el-
Product ID:11590
Updated: 2026/4/3
Key Features
- 1Deliver precise control with a double-acting pushing roller lever design. 2、Optimize space using the compact 30mm stroke and 63mm piston. 3、Reduce wear and ensure smooth operation via elastic cushioning rings. 4、Install flexibly in any position for easy system integration. 5、Ensure reliable performance in moderate corrosion environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm 400mm | Piston diameter | 63 mm |
| Piston rod thread | M12x1.25 | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Piston rod end | Internal thread | Structural design | Piston Piston rod Cylinder barrel |
| Position sensing | For proximity sensor | Variants | With end-position locking at both ends With rear end-position locking With front end-position locking Extended external thread piston rod Special thread on piston rod Extended piston rod Laser etched rating plate |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.3J |
| Theoretical force at 6 bar, retracting | 1750N | Theoretical force at 6 bar, advancing | 1870N |
| Additional moving mass per 10?mm stroke | 16g | Type of mounting | With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy Smooth anodized | Manufacturer ID | 548219 |
Specifications may be subject to change without notice
