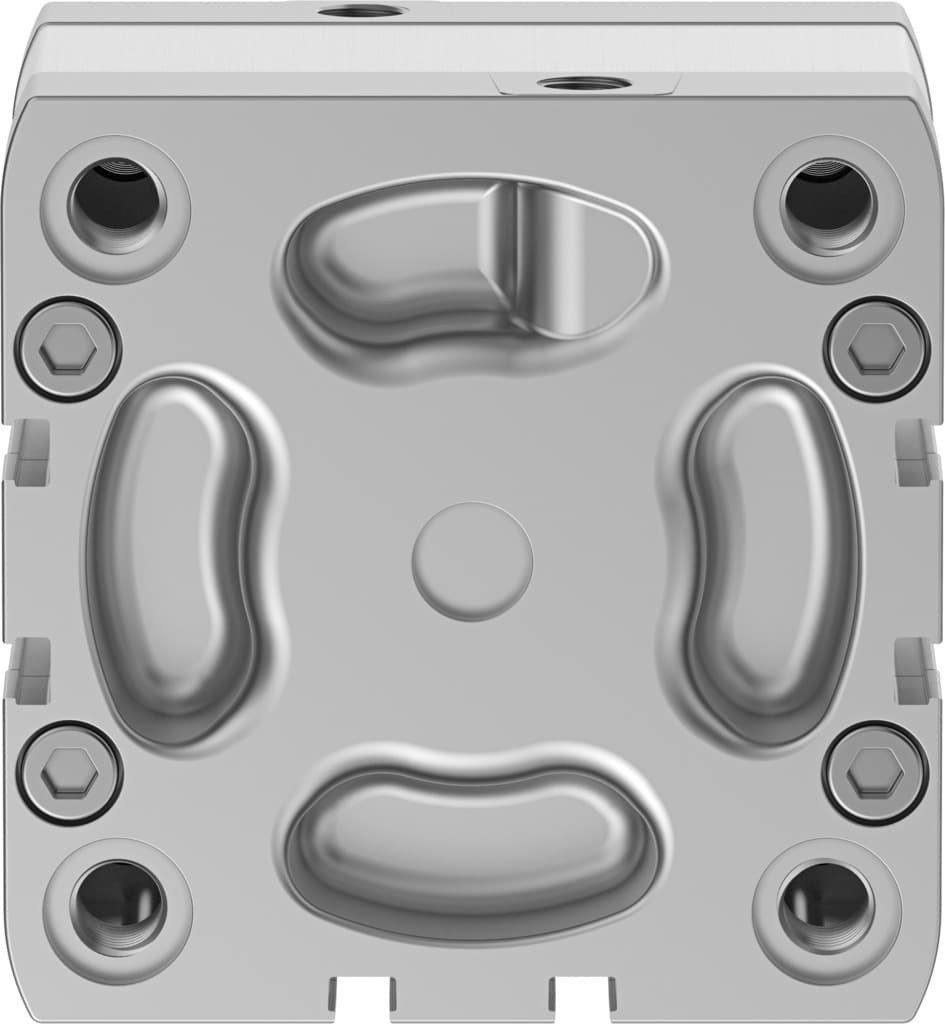

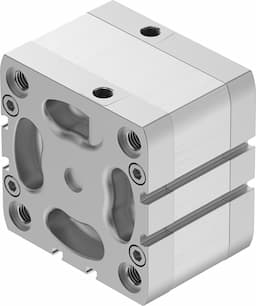

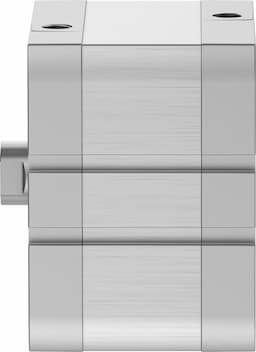

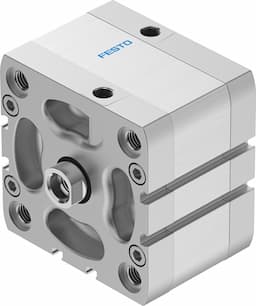

adn-80-15-i-pps-a
Product ID:13736
Updated: 2026/4/4
Key Features
- 1Optimize space with a compact 80mm bore and 15mm stroke design. 2、Ensure smooth operation using self-adjusting pneumatic end-position cushioning. 3、Enable precise control via reliable double-acting cylinder operation. 4、Guarantee quality and compliance with ISO 21287 standard certification. 5、Simplify installation with versatile female thread or through-hole mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 80 mm |
| Piston rod thread | M12 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | Internal thread | Position sensing | For proximity sensor |
| Symbol | 00992970 | Variants | Piston rod at one end |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 8J |
| Cushioning length | 7.5mm | Theoretical force at 6 bar, retracting | 2827N |
| Theoretical force at 6 bar, advancing | 3016N | Moving mass | 361g |
| Product weight | 1153g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Die-cast aluminum, coated |
| Seals material | TPE-U(PUR) | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 572719 |
Specifications may be subject to change without notice
