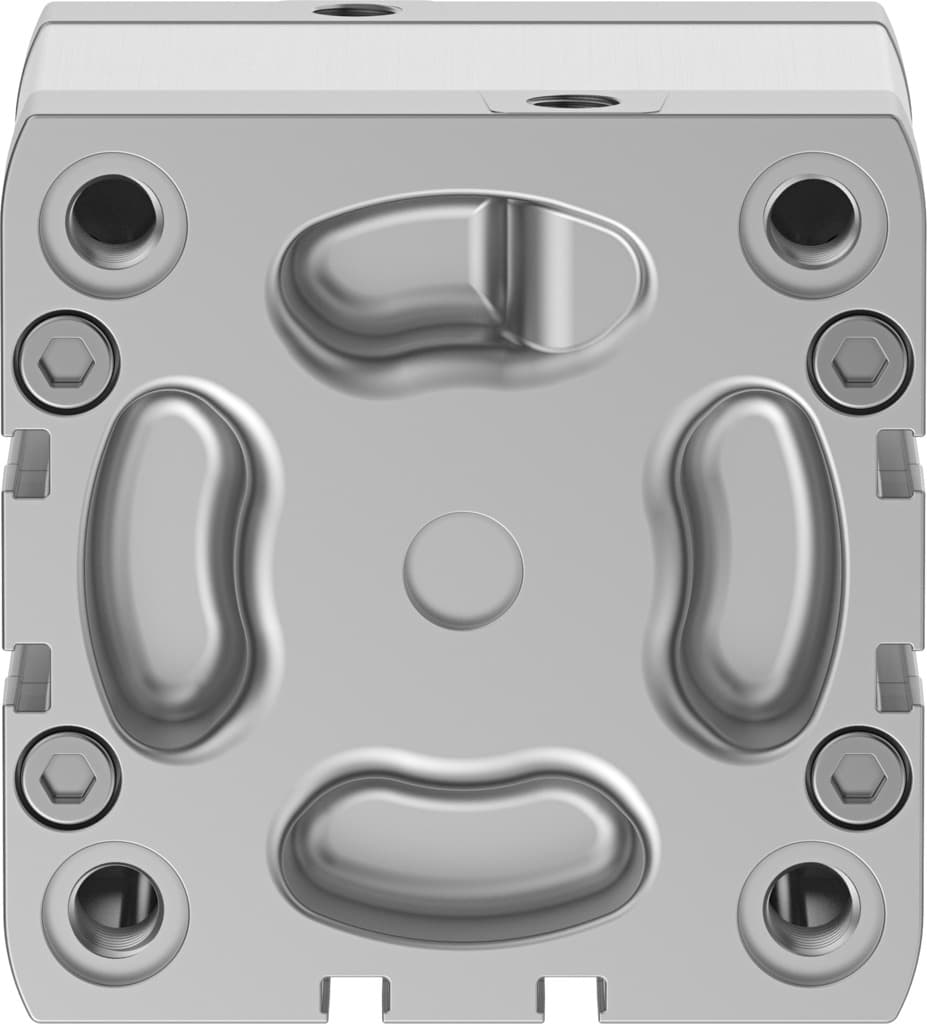

adn-80-30-a-p-a
Product ID:10140
Updated: 2026/4/4
Key Features
- 1Install in any mounting position for versatile application. 2、Utilize high-alloy steel piston rod for superior durability. 3、Benefit from flexible cushioning rings for effective damping. 4、Integrate proximity sensors for precise position detection. 5、Operate within 0.6 to 10 bar pressure range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 30mm | Piston diameter | 80 mm |
| Piston rod thread | M16x1.5 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Conforms to standard | ISO 21287 |
| Piston rod end | External thread | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.8J |
| Theoretical force at 6 bar, retracting | 2827N | Theoretical force at 6 bar, advancing | 3016N |
| Moving mass | 506g | Product weight | 1380g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 536357 |
