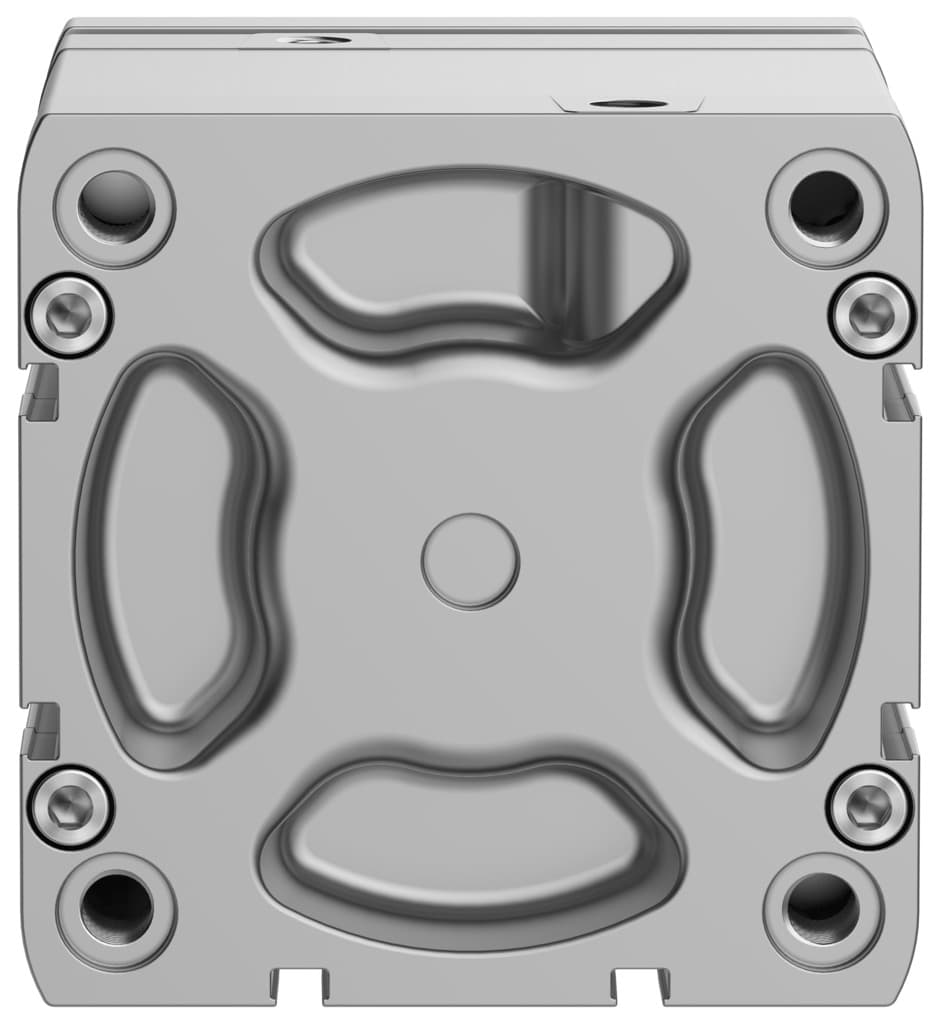

adngf-100-40-pps-a
Product ID:14618
Updated: 2026/7/14
Key Features
- 1Increase load capacity with robust guide rods and yoke plates.
- 2Ensure smooth operation using self-adjusting PPS end-position cushioning.
- 3Adapt to any assembly position for versatile application integration.
- 4Meet ISO 21287 standards for guaranteed precision and international compliance.
- 5Control forward and reverse motion with reliable double-acting operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 40mm | Piston diameter | 100 mm |
| Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
| Cushioning length | 10mm | Theoretical force at 6 bar, retracting | 4524N |
| Theoretical force at 6 bar, advancing | 4712N | Moving mass | 1259g |
| Product weight | 2692g | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577229 |
Specifications may be subject to change without notice
