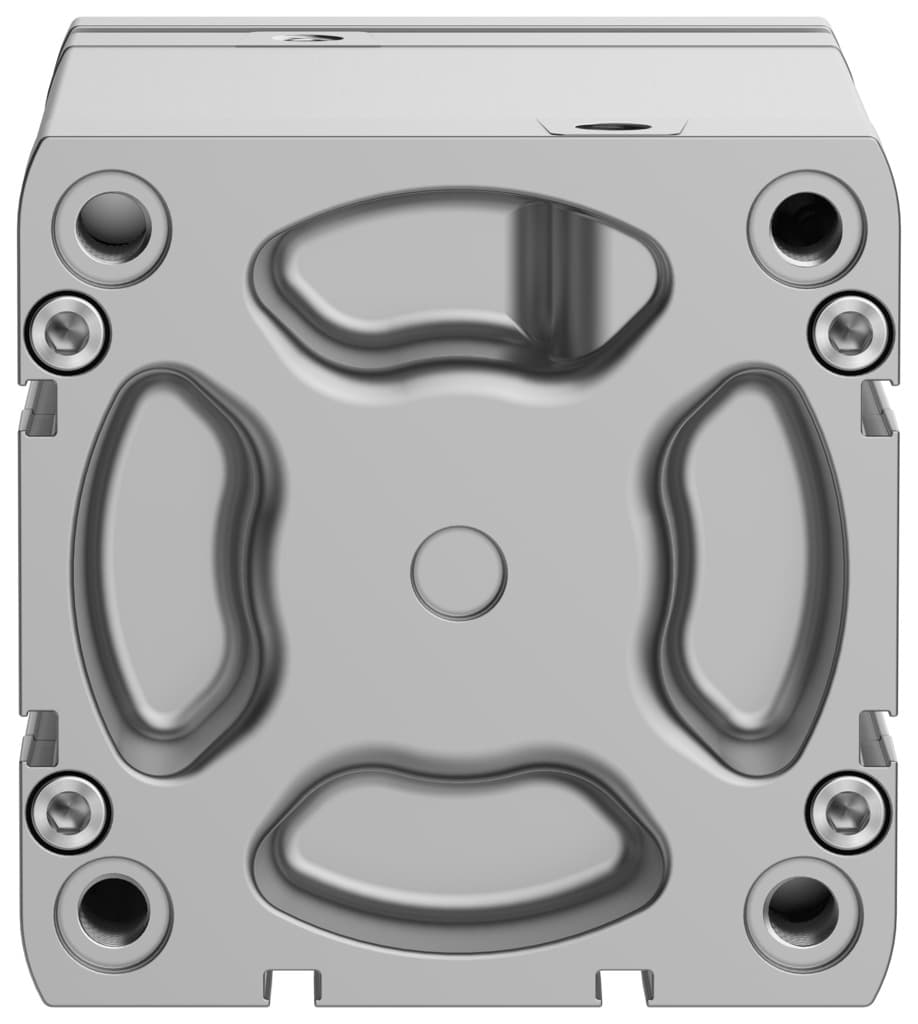

adngf-100-80-pps-a
Product ID:14621
Updated: 2026/4/3
Key Features
- 1Achieve higher load capacity with its robust guide rod and yoke plate design. 2、Optimize performance using self-adjusting pneumatic end-position cushioning (PPS). 3、Ensure precision and reliability per ISO 21287 standard compliance. 4、Install flexibly with versatile mounting in any position. 5、Meet stringent industrial compatibility requirements with ISO standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 80mm | Piston diameter | 100 mm |
| Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.4bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 2.5J |
| Cushioning length | 10mm | Theoretical force at 6 bar, retracting | 4524N |
| Theoretical force at 6 bar, advancing | 4712N | Moving mass | 1429g |
| Product weight | 3157g | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Die-cast aluminum, coated | Seals material | TPE-U(PUR) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577232 |
Specifications may be subject to change without notice
