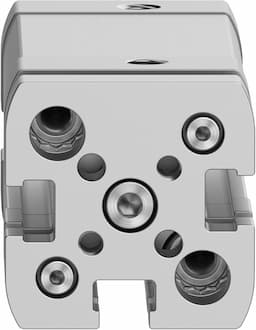

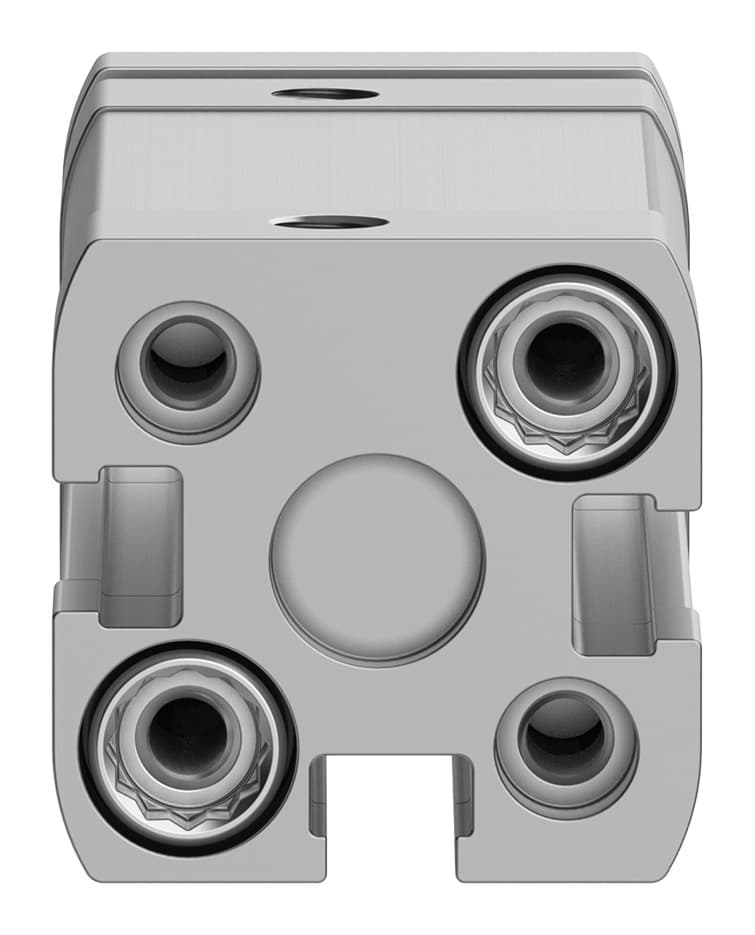

adngf-12-25-p-a
Product ID:12092
Updated: 2026/7/14
Key Features
- 1Optimize space with a compact 12mm bore and 25mm stroke design.
- 2Enable versatile push-pull motion using double-acting pneumatic operation.
- 3Reduce impact and wear using integrated elastic cushioning at both ends.
- 4Facilitate position sensing via the cylinder's built-in magnet.
- 5Ensure precise, secure linear motion with anti-rotation protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 12 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
| Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
| Moving mass | 29g | Product weight | 112g |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 554209 |
Specifications may be subject to change without notice
