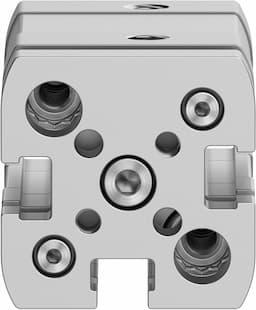

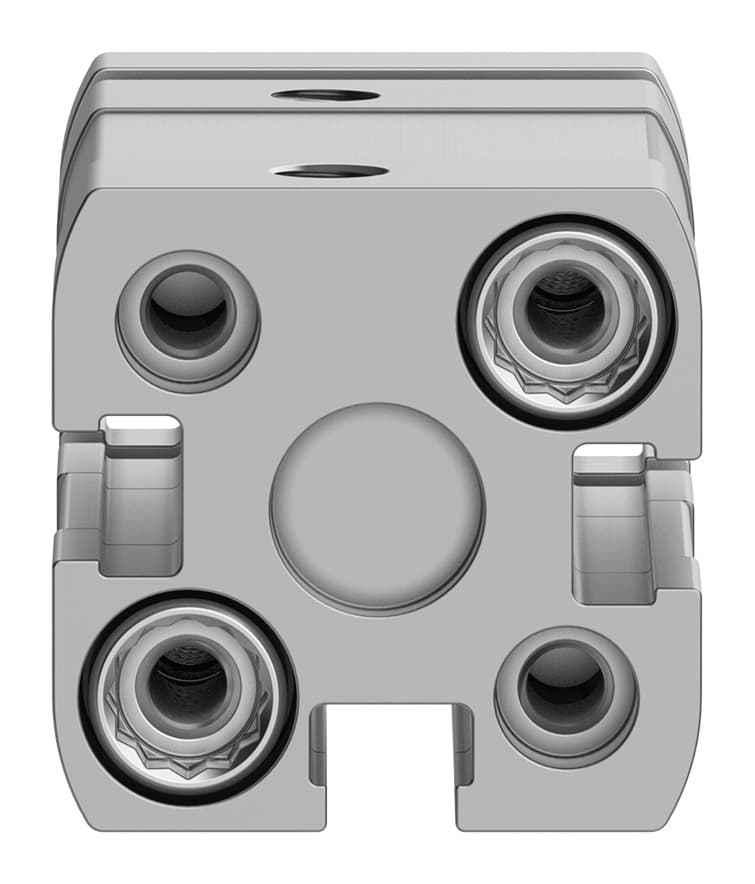

adngf-12-5-p-a
Product ID:12088
Updated: 2026/4/4
Key Features
- 1Deliver precise motion control with a 12 mm piston and 5 mm stroke. 2、Save space in compact machinery using this ISO-standard cylinder. 3、Reduce wear and ensure smooth operation with elastic cushioning rings. 4、Integrate flexibly into various systems with optional mounting positions. 5、Achieve reliable performance meeting industry standards for longevity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 12 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.07J |
| Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
| Moving mass | 24g | Product weight | 83g |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 554205 |
Specifications may be subject to change without notice
