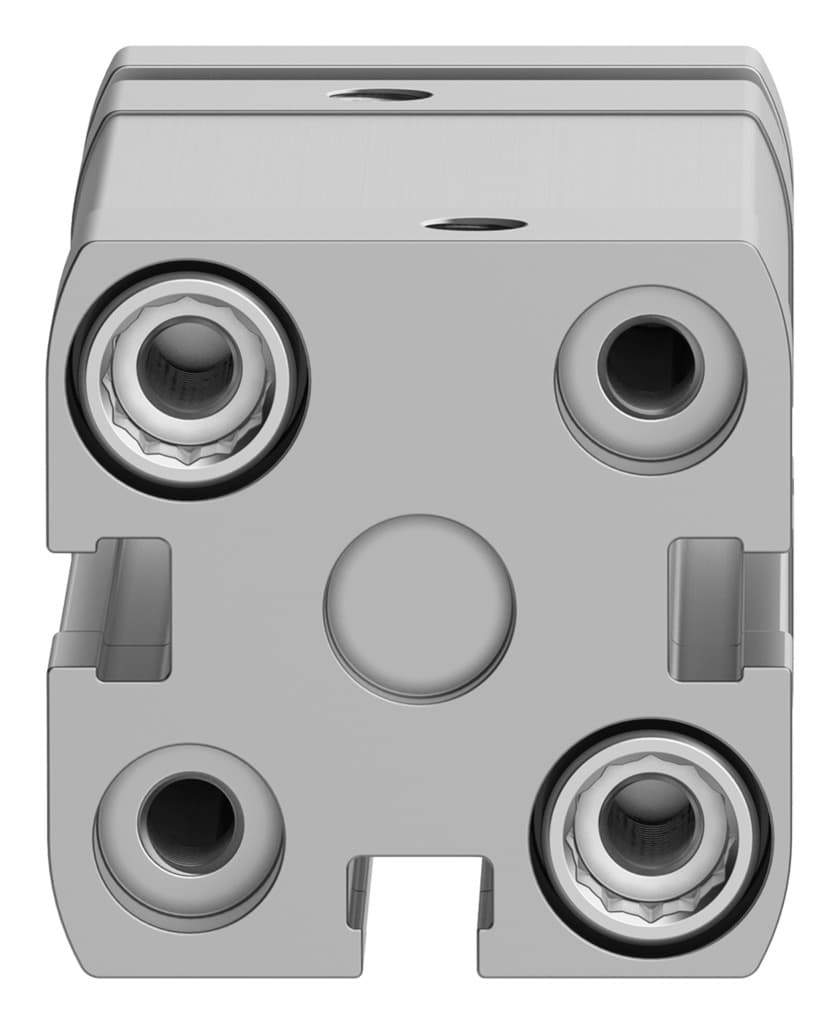

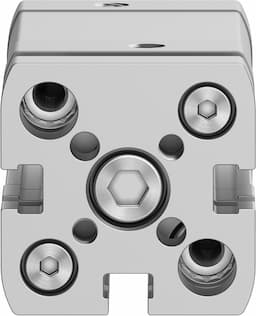

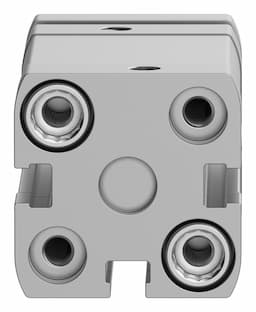

adngf-20-25-p-a
Product ID:12107
Updated: 2026/4/4
Key Features
- 1Achieve versatile motion with a 20 mm stroke and 25 mm piston diameter. 2、Reduce impact and wear using elastic cushioning rings at both ends. 3、Ensure system reliability with ISO 21287 standard compliance. 4、Install flexibly in any mounting position due to compact design. 5、Connect easily using the standard hole pattern and Festo accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 20 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
| Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 188N |
| Moving mass | 85g | Product weight | 219g |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 554224 |
