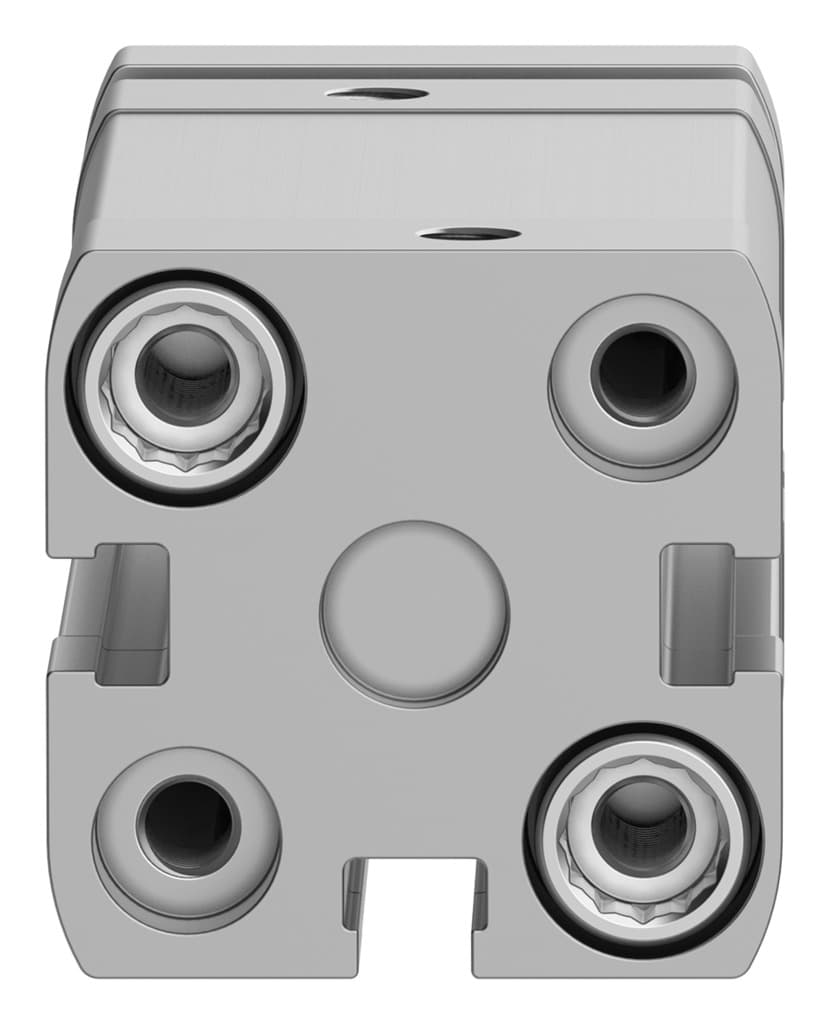

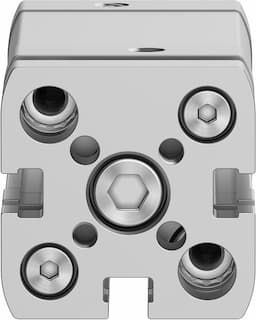

adngf-20-25-pps-a
Product ID:14601
Updated: 2026/4/3
Key Features
- 1Enhance load-bearing with guide rods and yoke plates. 2、Ensure smooth operation via pneumatic cushioning to reduce wear. 3、Achieve accurate positioning with optional proximity switches. 4、Utilize a high-alloy steel piston rod and aluminum barrel. 5、Operate reliably from -20°C to 80°C and 0.19-1 MPa.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 20 mm |
| Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.9bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.2J |
| Cushioning length | 3mm | Theoretical force at 6 bar, retracting | 141N |
| Theoretical force at 6 bar, advancing | 188N | Moving mass | 83g |
| Product weight | 216g | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577211 |
