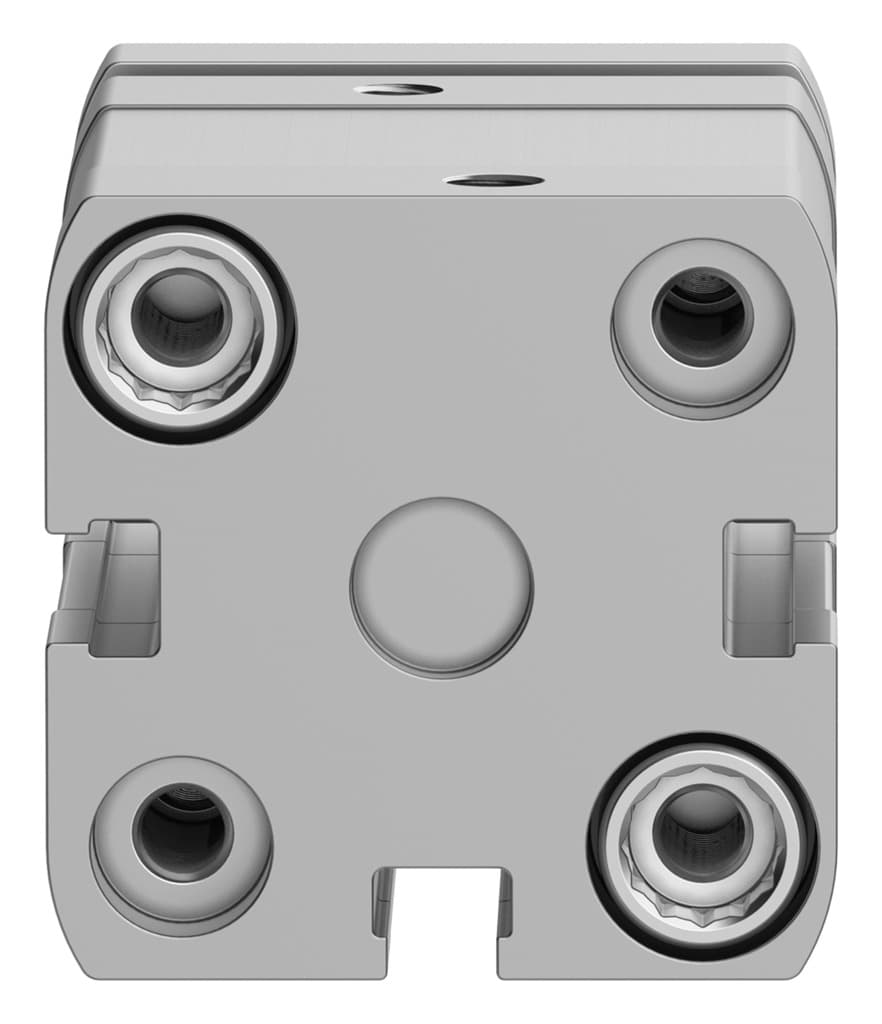

adngf-25-10-pps-a
Product ID:14606
Updated: 2026/4/3
Key Features
- 1Utilize self-adjusting pneumatic end-position cushioning for smooth operation. 2、Employ double-acting mode for efficient and balanced movement. 3、Benefit from CRC 2 corrosion resistance for moderate stress environments. 4、Operate within a versatile 1.9 to 10 bar pressure range. 5、Integrate a compact 25 mm diameter, 10 mm stroke design to save space.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 25 mm |
| Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.9bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
| Cushioning length | 3.5mm | Theoretical force at 6 bar, retracting | 247N |
| Theoretical force at 6 bar, advancing | 295N | Moving mass | 106g |
| Product weight | 248g | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577216 |
Specifications may be subject to change without notice
