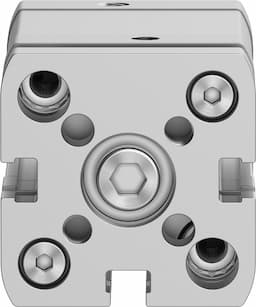

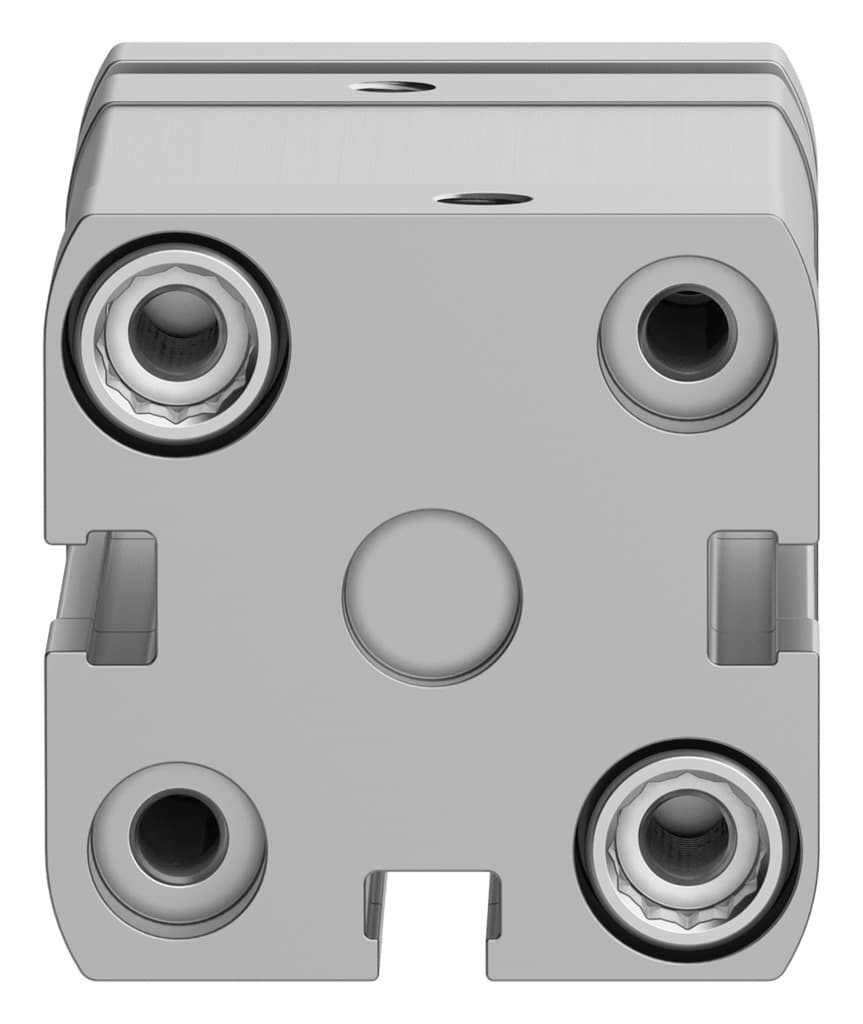

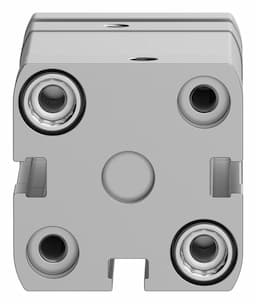

adngf-25-20-pps-a
Product ID:14608
Updated: 2026/4/3
Key Features
- 1Ensure smooth operation and reduce wear. 2、Suit both forward and reverse motion applications. 3、Enhance stability with guide rod and yoke plate. 4、Meet international standards for pneumatic cylinders. 5、Mount in any position for flexible installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 25 mm |
| Based on norm | ISO 21287 | Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.9bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 0.3J |
| Cushioning length | 3.5mm | Theoretical force at 6 bar, retracting | 247N |
| Theoretical force at 6 bar, advancing | 295N | Moving mass | 116g |
| Product weight | 279g | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Flange screws material | Steel |
| Cover material | Wrought aluminum alloy, anodized | Seals material | TPE-U(PUR) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 577218 |
Specifications may be subject to change without notice
