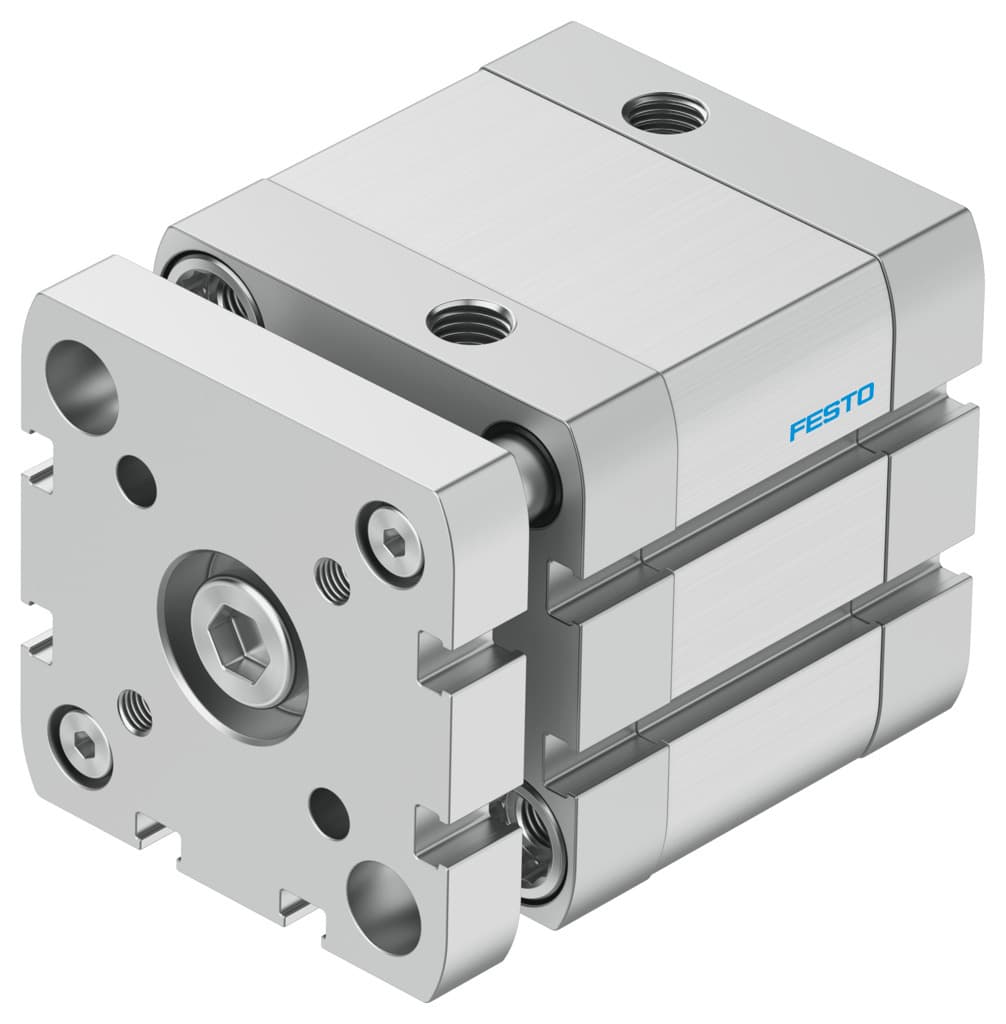

adngf-3"-3"-p-a
Product ID:12692
Updated: 2026/4/4
Key Features
- 1Optimize manufacturing, robotics, and process automation. 2、Incorporate elastic cushioning rings for smooth operation. 3、Enable advancing and retracting strokes with compressed air. 4、Meet ISO 21287 standards with corrosion resistance class 2. 5、Fit confined spaces with a 3-inch stroke and diameter.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 76.2mm | Piston diameter | 3" |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.79917J |
| Theoretical force at 6 bar, retracting | 2827.001N | Theoretical force at 6 bar, advancing | 3016.002N |
| Moving mass at 0?mm stroke | 780.787g | Additional moving mass per 10?mm stroke | 97.354g |
| Basic weight with 0?mm stroke | 1684.018g | Additional weight per 10?mm stroke | 43.149g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | 1/8 NPT |
| Flange screws material | Steel | Cover material | Die-cast aluminum, coated |
| Seals material | NBR | Material of dynamic seals | TPE-U(PU) |
| End plate material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 557278 |
Specifications may be subject to change without notice
