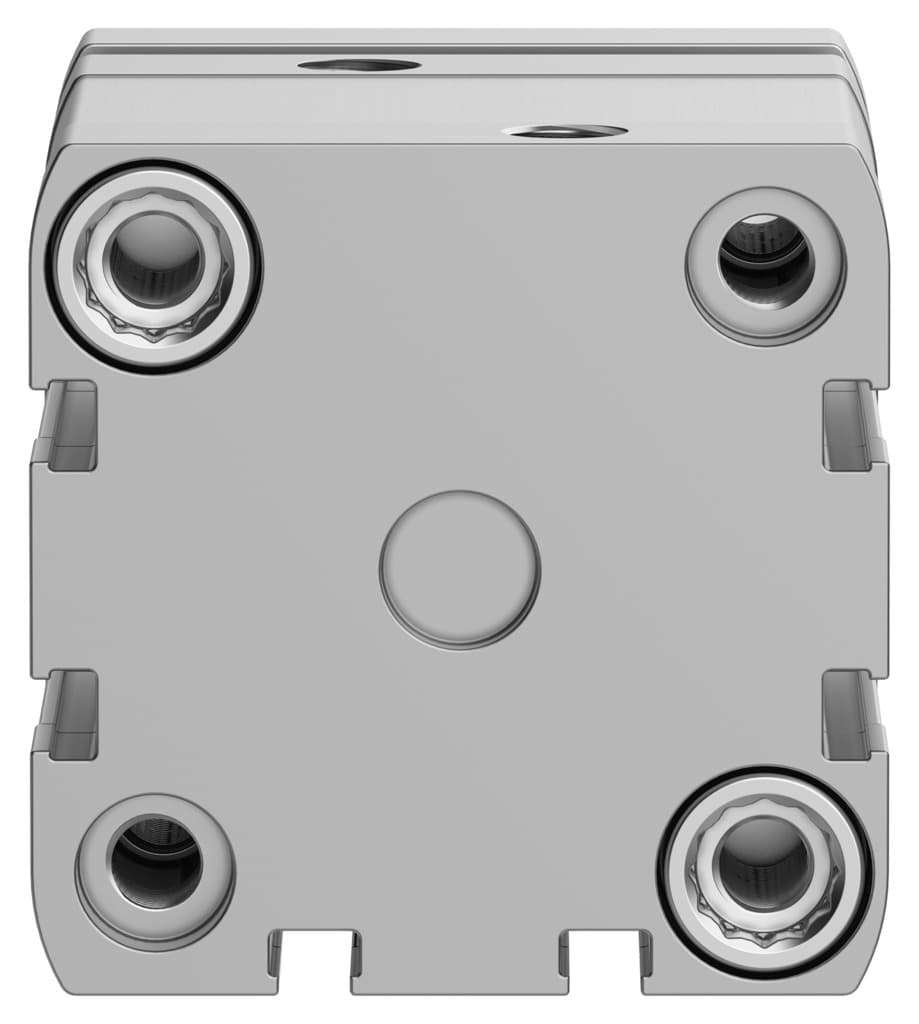

adngf-50-20-p-a
Product ID:12144
Updated: 2026/7/14
Key Features
- 1Meet ISO 21287 standard with 20 mm stroke and 50 mm piston diameter.
- 2Enable double-acting operation from 1 to 10 bar pressure.
- 3Prevent rotation with integrated guide rod and yoke plate.
- 4Utilize RoHS materials like steel and aluminium alloy.
- 5Operate in -20°C to 80°C with LABS conformity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 50 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1J |
| Theoretical force at 6 bar, retracting | 1057N | Theoretical force at 6 bar, advancing | 1178N |
| Moving mass | 347g | Product weight | 782g |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 554261 |
Specifications may be subject to change without notice
