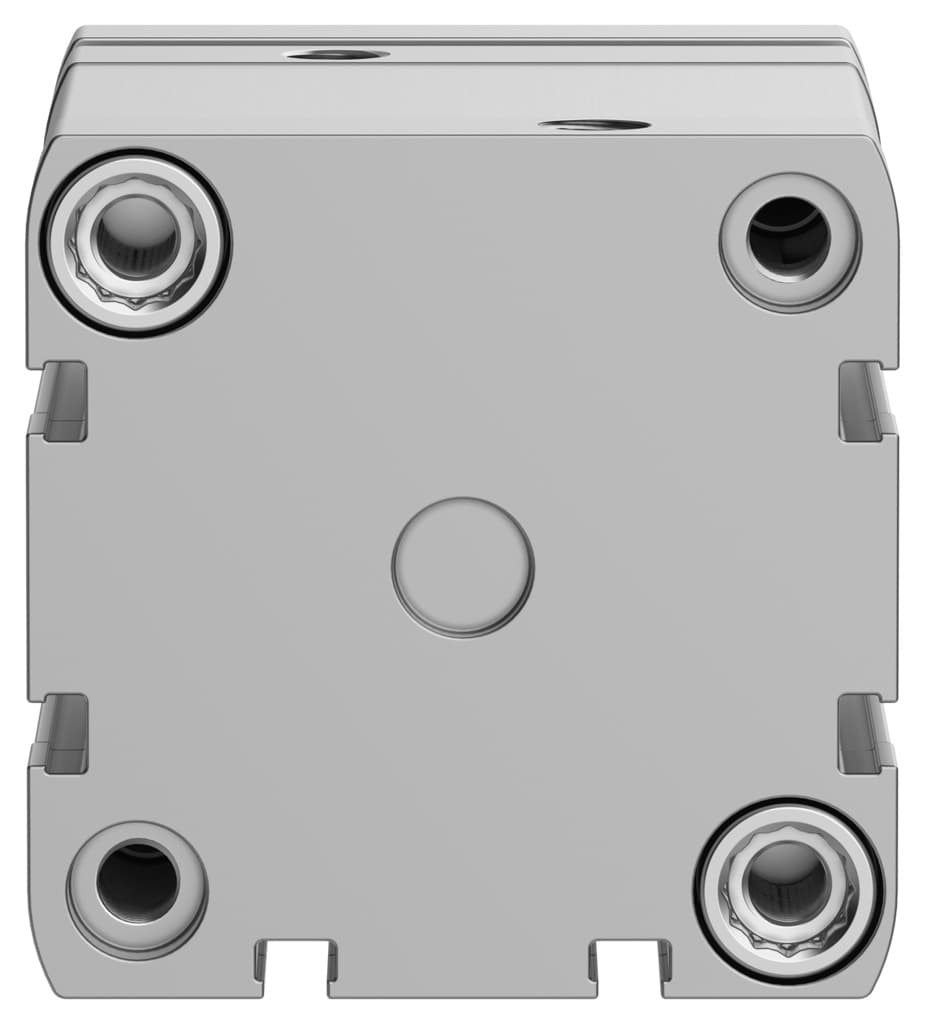

adngf-63-30-p-a
Product ID:12155
Updated: 2026/4/4
Key Features
- 1Comply with ISO 21287 standard for reliable operation. 2、Achieve precise motion with a 30 mm stroke length. 3、Integrate easily using standard mounting hole patterns. 4、Reduce wear with adjustable cushioning at both ends. 5、Operate within a 1.5 to 10 bar pressure range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 30mm | Piston diameter | 63 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.3J |
| Theoretical force at 6 bar, retracting | 1750N | Theoretical force at 6 bar, advancing | 1870N |
| Moving mass | 485g | Product weight | 1145g |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 554272 |
Specifications may be subject to change without notice
