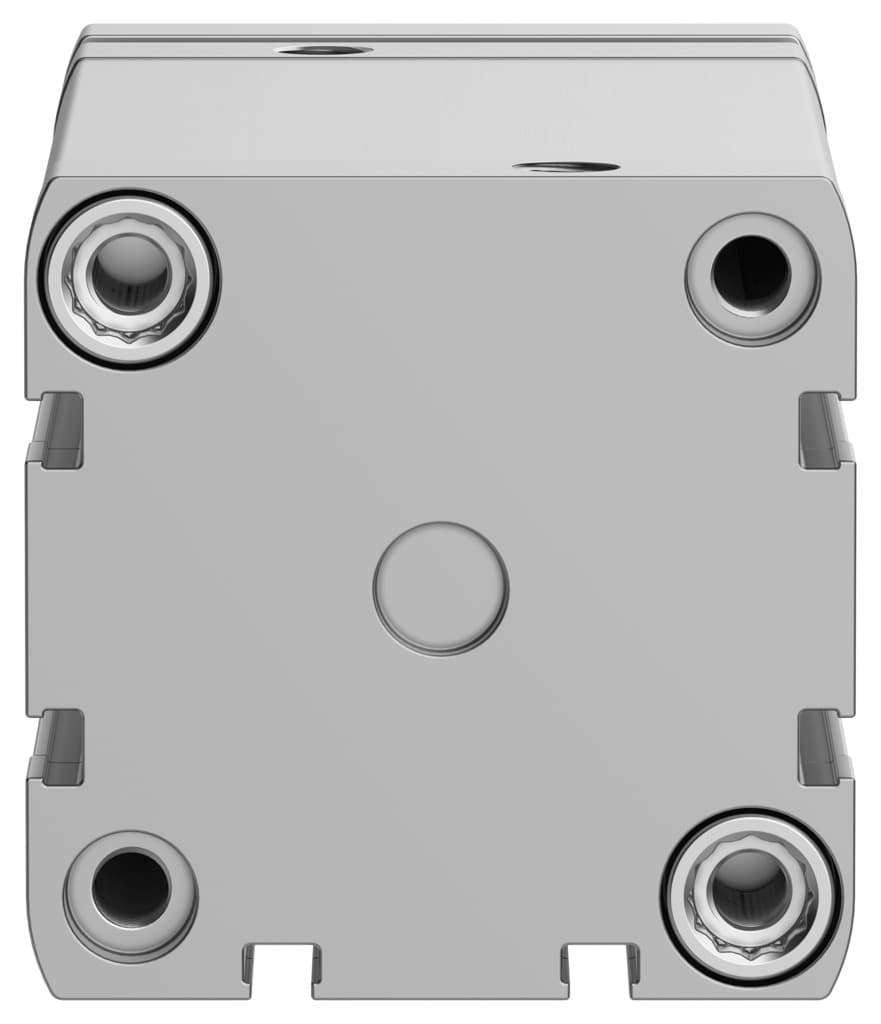

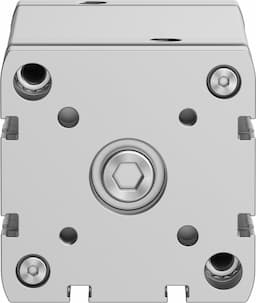

adngf-63-80-p-a
Product ID:12159
Updated: 2026/4/4
Key Features
- 1Utilize high-alloy steel piston rods for superior durability and corrosion resistance. 2、Benefit from elastic cushioning at both ends to ensure smooth operation and reduce wear. 3、Operate in both directions with its double-acting design for versatile application. 4、Meet ISO 21287 standards for guaranteed compatibility and reliability. 5、Install in any mounting position for flexible system design and integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 80mm | Piston diameter | 63 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.3J |
| Theoretical force at 6 bar, retracting | 1750N | Theoretical force at 6 bar, advancing | 1870N |
| Moving mass | 626g | Product weight | 1504g |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Wrought aluminum alloy, anodized |
| Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 554276 |
Specifications may be subject to change without notice
