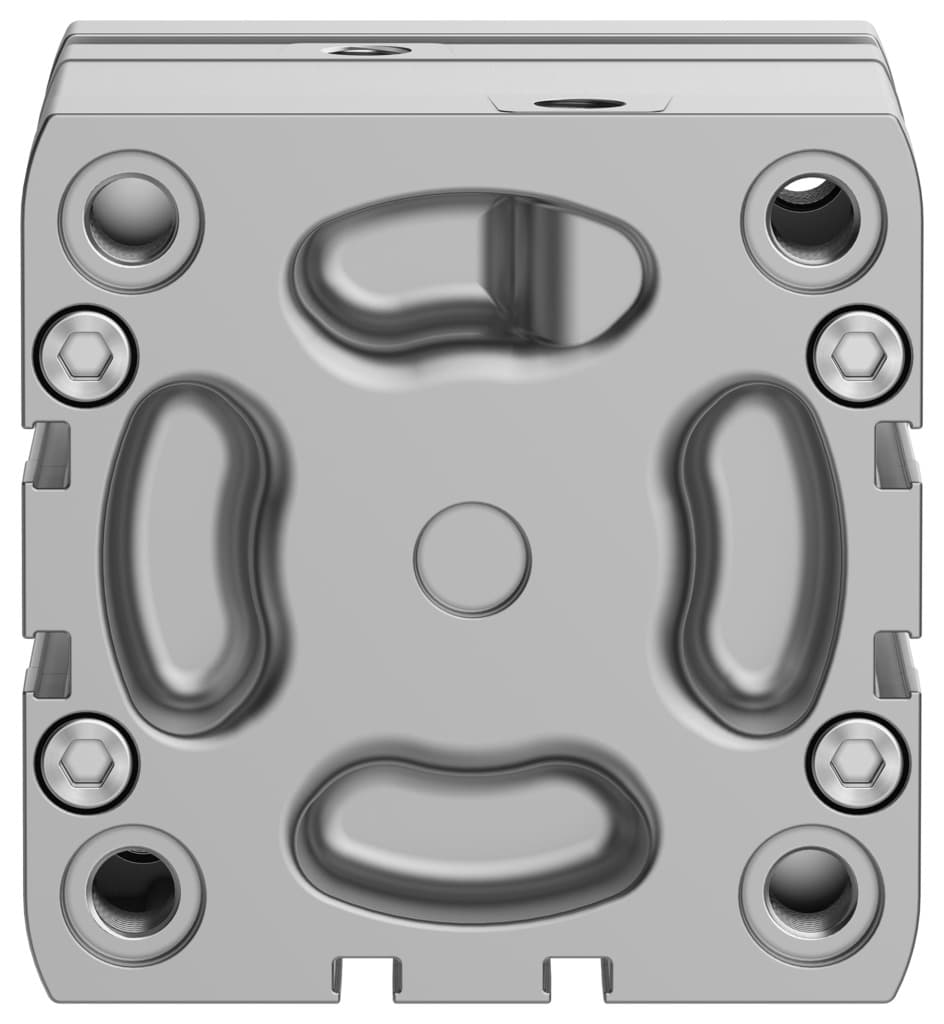

adngf-80-15-p-a
Product ID:12161
Updated: 2026/4/4
Key Features
- 1Utilize a compact design for space-limited applications. 2、Reduce noise and vibration with adjustable pneumatic cushioning. 3、Achieve high accuracy in precision industrial tasks. 4、Mount in any position per ISO 21287 standards. 5、Absorb energy effectively with elastic cushioning rings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 80 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 10bar | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Impact energy in the end positions | 1.8J |
| Theoretical force at 6 bar, retracting | 2827N | Theoretical force at 6 bar, advancing | 3016N |
| Moving mass | 824g | Product weight | 1611g |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Flange screws material | Steel | Cover material | Die-cast aluminum, coated |
| Seals material | TPE-U(PUR) | End plate material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy steel | Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Manufacturer ID | 554278 |
Specifications may be subject to change without notice
