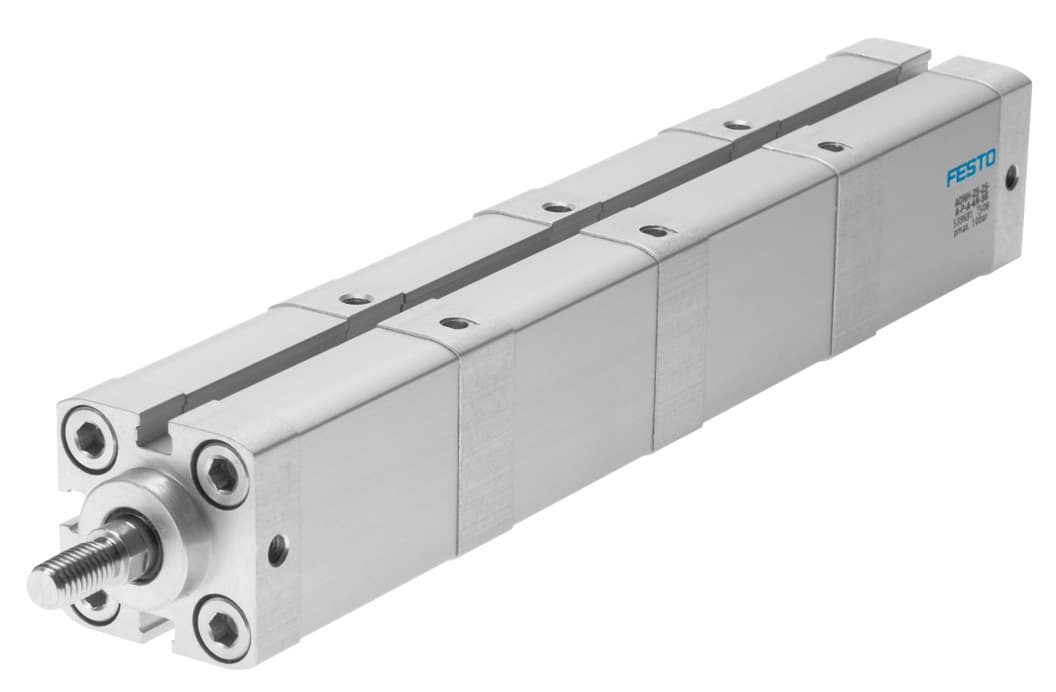

adnh-63- -
Product ID:10488
Updated: 2026/7/18
Key Features
- 1Deliver high precision and reliability for consistent performance.
- 2Feature advanced sealing to reduce leakage and extend lifespan.
- 3Engineer robust construction for heavy loads and harsh environments.
- 4Offer adjustable stroke lengths for flexible system integration.
- 5Ensure compatibility with Festo components for easy maintenance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm 150mm | Piston diameter | 63 mm |
| Based on norm | ISO 21287 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod Profile barrel | Position sensing | For proximity sensor |
| Symbol | 00991223 00991246 00991267 | Variants | Extended external thread piston rod Special thread on piston rod Extended piston rod Heat-resistant seals max. 120°C Laser etched rating plate |
| Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 120°C |
| Theoretical force at 6 bar, retracting | 1681N | Theoretical force at 6 bar, advancing | 7120N |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 539693 |
Specifications may be subject to change without notice
