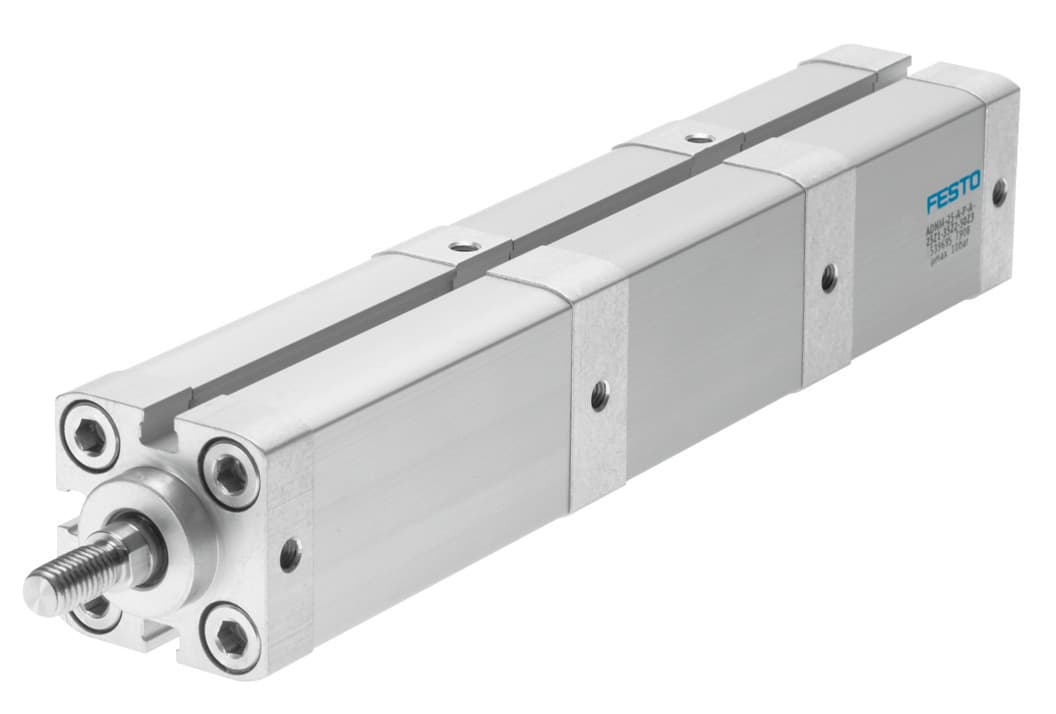

adnm-40- -
Product ID:10491
Updated: 2026/4/5
Key Features
- 1Achieve precise motion control with a 40 mm piston diameter. 2、Adjust stroke lengths from 1 to 2000 mm for ultimate flexibility. 3、Ensure smooth operation with integrated elastic cushioning at both ends. 4、Utilize double-acting operation with ISO 8573-1:2010 compressed air. 5、Benefit from durable construction with corrosion-resistant alloys.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston diameter | 40 mm | Possible stroke of last cylinder position | 1mm 2000mm |
| Possible stroke of intermediate positions | 1mm 300mm | Based on norm | ISO 21287 |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Structural design | Piston Piston rod Profile barrel | Max. number of intermediate positions | 5 |
| Max. total of all individual strokes | 2000mm | Position sensing | For proximity sensor |
| Symbol | 00991220 | Variants | Extended external thread piston rod Special thread on piston rod Extended piston rod Heat-resistant seals max. 120°C Laser etched rating plate |
| Operating pressure | 11.6psi 145psi | Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 120°C | Theoretical force at 6 bar, retracting | 633N |
| Theoretical force at 6 bar, advancing | 754N | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 539696 |
Specifications may be subject to change without notice
