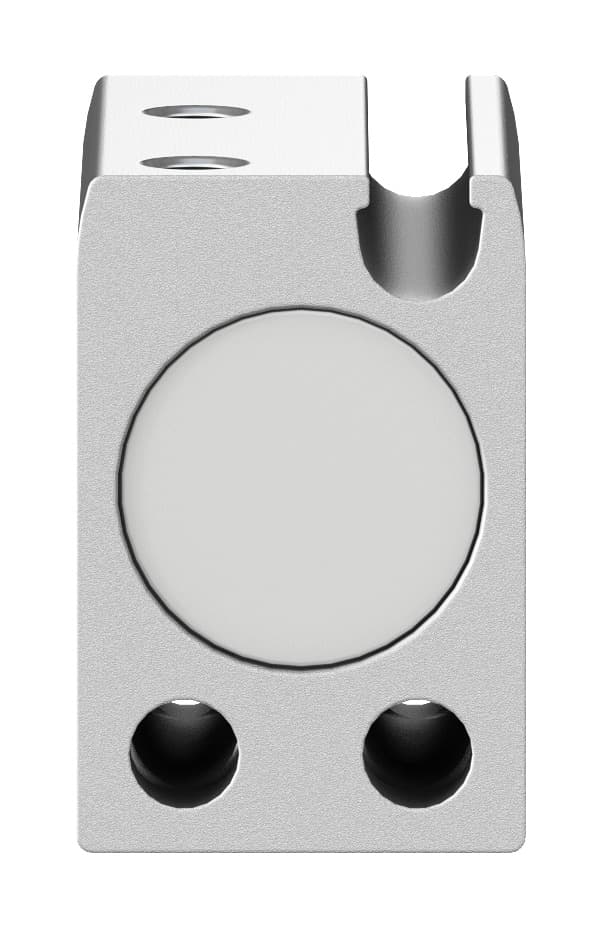

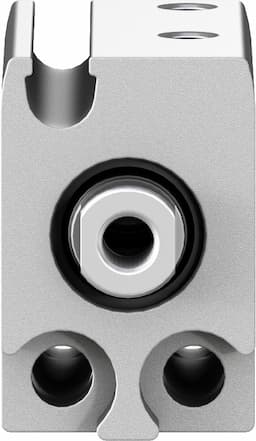

adn-s-10-5-i-a-f1a
Product ID:641
Updated: 2026/4/3
Key Features
- 1Achieve precise 5 mm strokes in tight spaces. 2、Operate efficiently without cushioning for minimal energy loss. 3、Mount in any position with flexible female thread connections. 4、Utilize lightweight 12.2g design for easy system integration. 5、Ensure reliability in demanding environments like battery manufacturing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 10 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991216 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
| Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Impact energy in the end positions | 0.012J | Theoretical force at 6 bar, retracting | 30.2N |
| Theoretical force at 6 bar, advancing | 47N | Moving mass | 4.5g |
| Product weight | 14.5g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized Anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8142520 |
Specifications may be subject to change without notice
