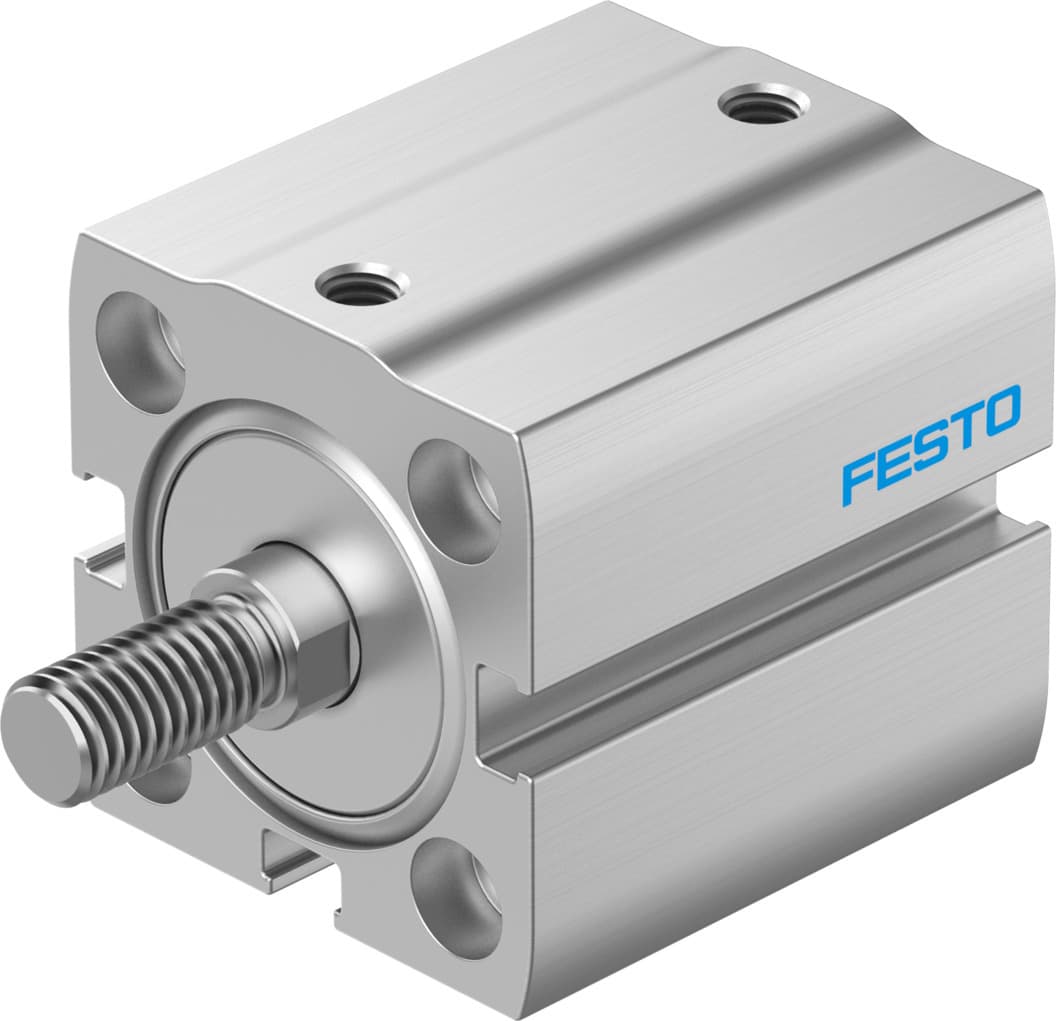

adn-s-25-20-a-p
Product ID:16603
Updated: 2026/4/3
Key Features
- 1Utilize elastic cushioning rings for smooth operation and reduced wear. 2、Employ double-acting operation for versatile manufacturing applications. 3、Achieve high corrosion resistance (CRC 2) for durability. 4、Operate with ISO 8573-1:2010 compliant compressed air. 5、Apply in lithium-ion battery production with safety-enhanced materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Symbol | 00991227 |
| Variants | Piston rod at one end | Operating pressure | 0.6bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | 0°C 60°C |
| Impact energy in the end positions | 0.18J | Theoretical force at 6 bar, retracting | 247N |
| Theoretical force at 6 bar, advancing | 295N | Moving mass at 0?mm stroke | 17g |
| Additional moving mass per 10?mm stroke | 6g | Basic weight with 0?mm stroke | 70g |
| Additional weight per 10?mm stroke | 30g | Type of mounting | Optionally: With through-hole With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy, anodized | Material of dynamic seals | NBR |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8092091 |
Specifications may be subject to change without notice
