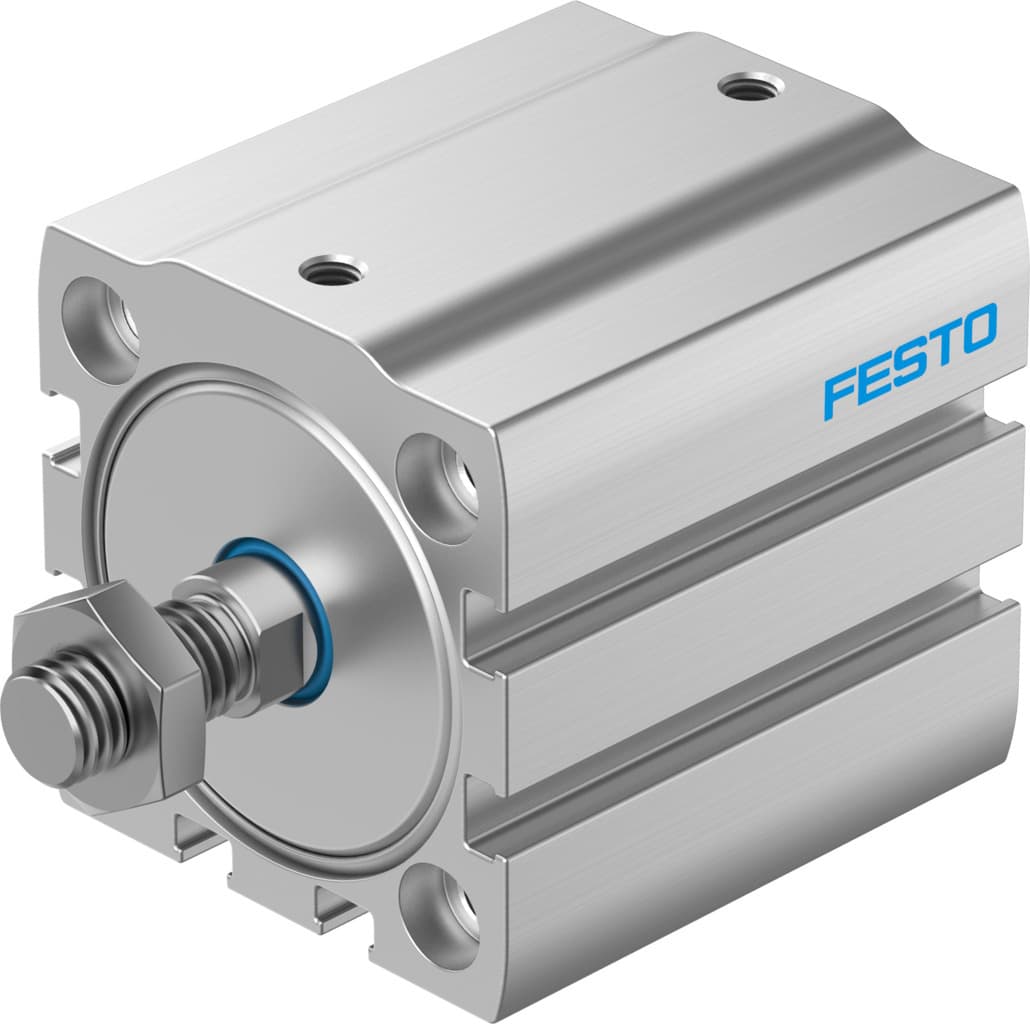

adn-s-40-30-a-p-a
Product ID:16590
Updated: 2026/4/3
Key Features
- 1Optimize space with a 40mm piston and 30mm stroke. 2、Ensure smooth operation via elastic cushioning rings. 3、Enable precise position detection with proximity sensor readiness. 4、Execute forward and reverse movements using double-acting design. 5、Power reliably with ISO 8573-1:2010 compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 30mm | Piston diameter | 40 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Piston rod at one end |
| Operating pressure | 0.6bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | 0°C 60°C | Impact energy in the end positions | 0.7J |
| Theoretical force at 6 bar, retracting | 686N | Theoretical force at 6 bar, advancing | 754N |
| Moving mass at 0?mm stroke | 62g | Additional moving mass per 10?mm stroke | 9g |
| Basic weight with 0?mm stroke | 304g | Additional weight per 10?mm stroke | 45g |
| Type of mounting | Optionally: With through-hole With internal thread With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy, anodized |
| Material of dynamic seals | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 8092061 |
Specifications may be subject to change without notice
