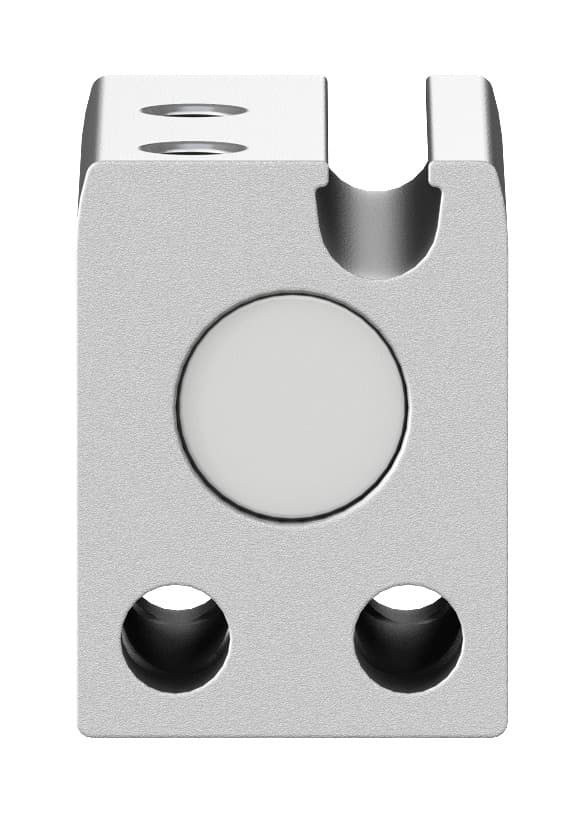

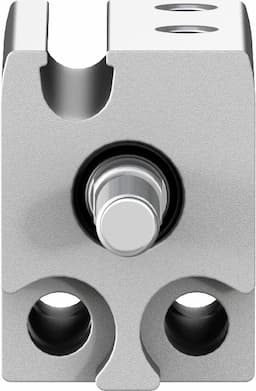

adn-s-6-5-a
Product ID:16423
Updated: 2026/4/3
Key Features
- 1Maximize space efficiency with a compact cylinder design. 2、Achieve precise movements using a 5mm stroke and 6mm piston. 3、Enhance operational flexibility through double-acting operation. 4、Ensure durability in various environments with CRC 2 corrosion resistance. 5、Simplify system integration with a standard M3 pneumatic connection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | External thread |
| Structural design | Piston Piston rod | Symbol | 00991215 |
| Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Impact energy in the end positions | 0.006J | Theoretical force at 6 bar, retracting | 9.4N |
| Theoretical force at 6 bar, advancing | 17N | Moving mass | 1.5g |
| Product weight | 9.2g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8080598 |
Specifications may be subject to change without notice
