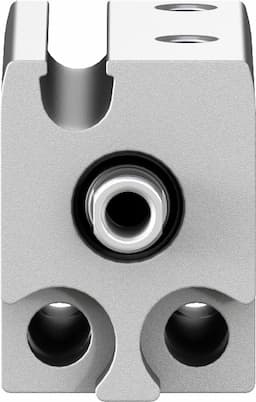

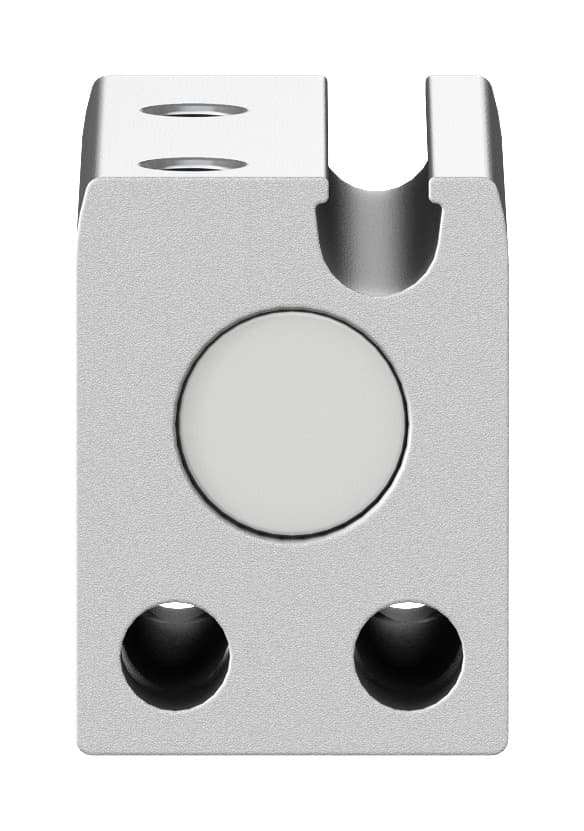

adn-s-6-5-i-a-f1a
Product ID:650
Updated: 2026/4/3
Key Features
- 1Achieve precise 5 mm strokes with a 6 mm piston diameter. 2、Operate efficiently without cushioning in double-acting mode. 3、Reduce system load with a lightweight 10.9 g design. 4、Simplify installation using through-hole mounting and female thread. 5、Ensure durability with RoHS-compliant aluminum and stainless steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | No cushioning | Mounting position | Any |
| Mode of operation | Double-acting | Piston rod end | Internal thread |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991216 | Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
| Operating pressure | 21.75psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 60°C |
| Impact energy in the end positions | 0.006J | Theoretical force at 6 bar, retracting | 9.4N |
| Theoretical force at 6 bar, advancing | 17N | Moving mass | 1.6g |
| Product weight | 10.9g | Type of mounting | With through-hole |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized Anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 8142511 |
Specifications may be subject to change without notice
