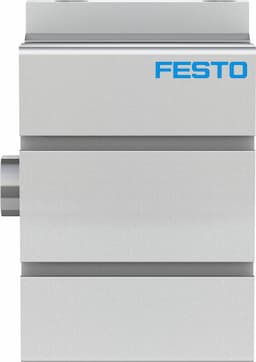

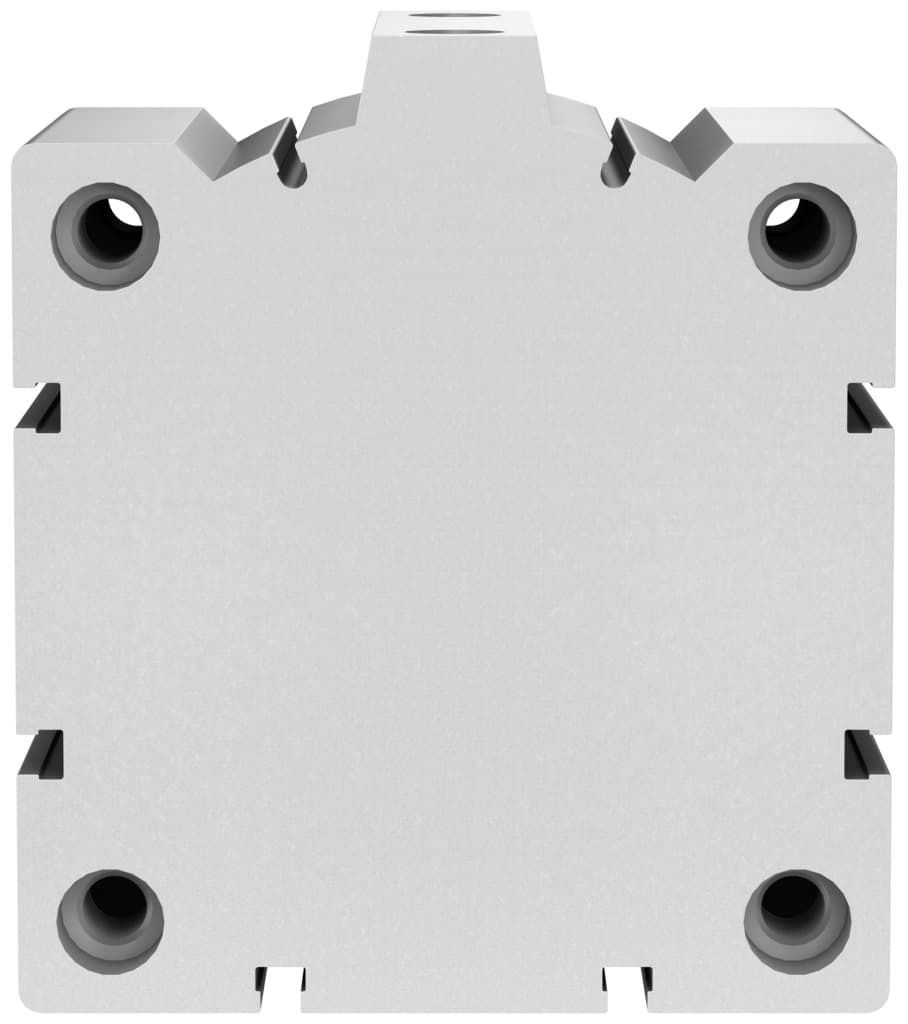

advc-100-25-i-p-a
Product ID:6473
Updated: 2026/4/3
Key Features
- 1Achieve precise motion with a 100mm piston diameter and 25mm stroke. 2、Operate efficiently using a reliable double-acting mode. 3、Ensure compliance with ISO 6431 and VDMA 24562 standards. 4、Extend service life via integrated elastic cushioning rings. 5、Adapt to diverse applications with a 1-10 bar pressure range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 25mm | Piston diameter | 100 mm |
| Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 4418N |
| Theoretical force at 6 bar, advancing | 4712N | Moving mass | 595g |
| Moving mass at 0?mm stroke | 515g | Additional moving mass per 10?mm stroke | 40g |
| Product weight | 2254g | Basic weight with 0?mm stroke | 2145g |
| Additional weight per 10?mm stroke | 110g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188335 |
Specifications may be subject to change without notice
