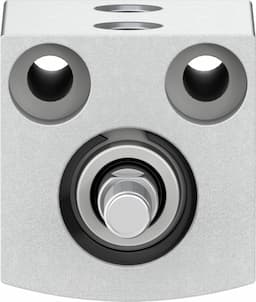

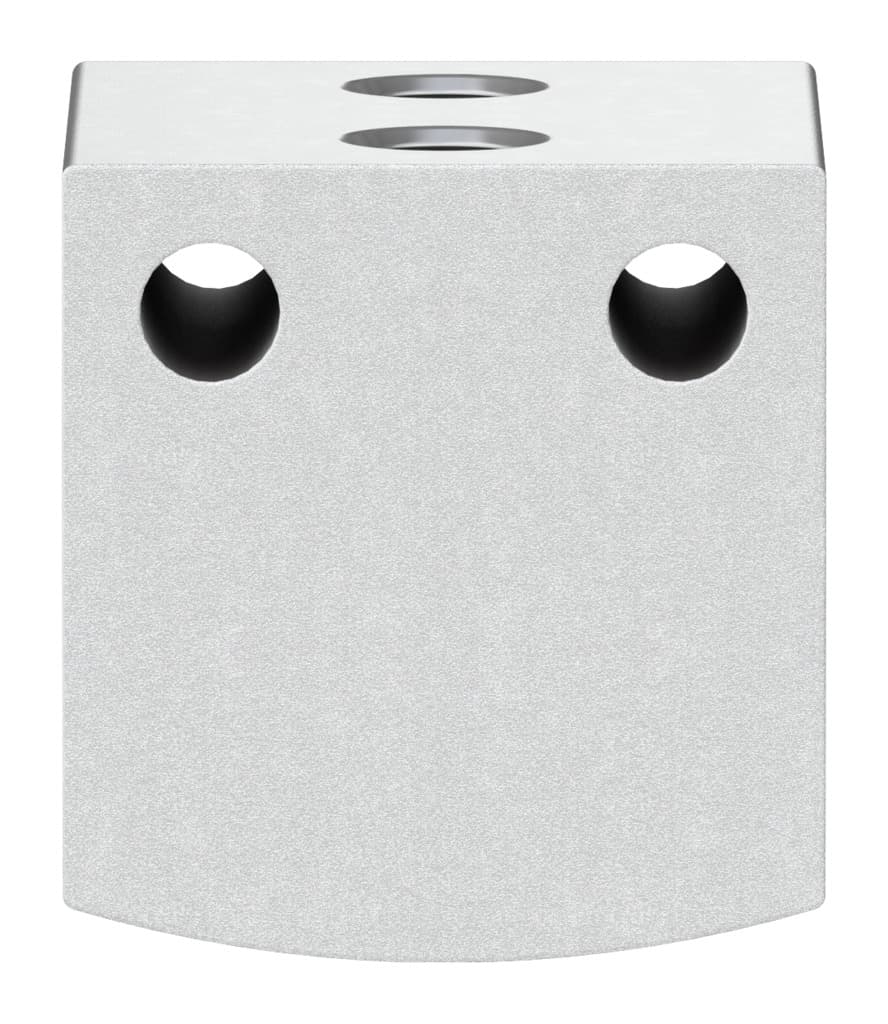

advc-10-5-a-p
Product ID:6218
Updated: 2026/7/7
Key Features
- 1Achieve precise 5 mm stroke with a 10 mm piston diameter.
- 2Reduce wear using elastic cushioning rings at both ends.
- 3Operate reliably from 0.1 to 0.8 MPa pressure range.
- 4Enable versatile double-acting extension and retraction strokes.
- 5Ensure durability with CRC 1 and LABS (PWIS) compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 10 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | None | Symbol | 00991227 |
| Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 40N | Theoretical force at 6 bar, advancing | 47N |
| Moving mass | 2.8g | Product weight | 20g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188078 |
Specifications may be subject to change without notice
