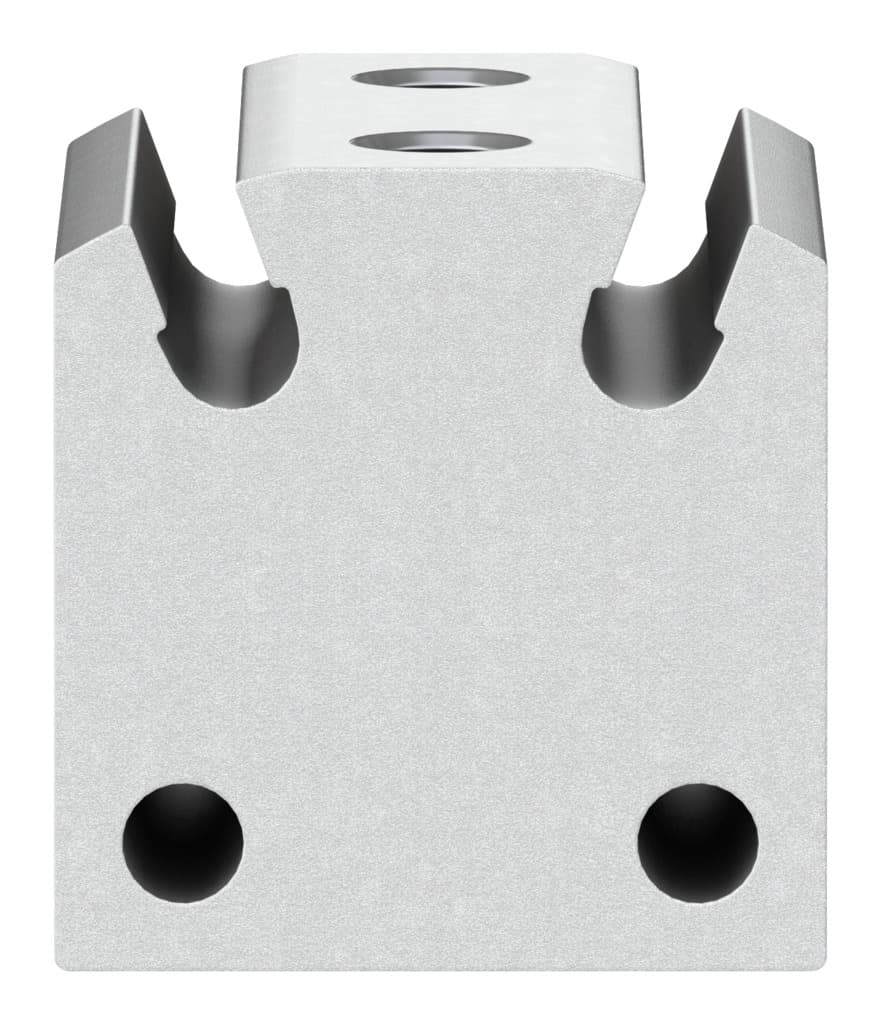

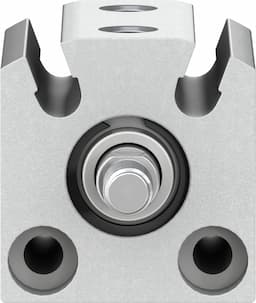

advc-10-5-a-p-a
Product ID:6216
Updated: 2026/4/3
Key Features
- 1Achieve precise 5 mm stroke control for accurate positioning. 2、Utilize elastic silencer rings for effective vibration damping. 3、Operate reliably across a wide -20°C to 80°C temperature range. 4、Benefit from a high force-to-weight ratio with a 3.2g moving mass. 5、Ensure optimal longevity with required lubricated operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 10 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 14.5psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 40N | Theoretical force at 6 bar, advancing | 47N |
| Moving mass | 3.2g | Product weight | 28g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188076 |
Specifications may be subject to change without notice
