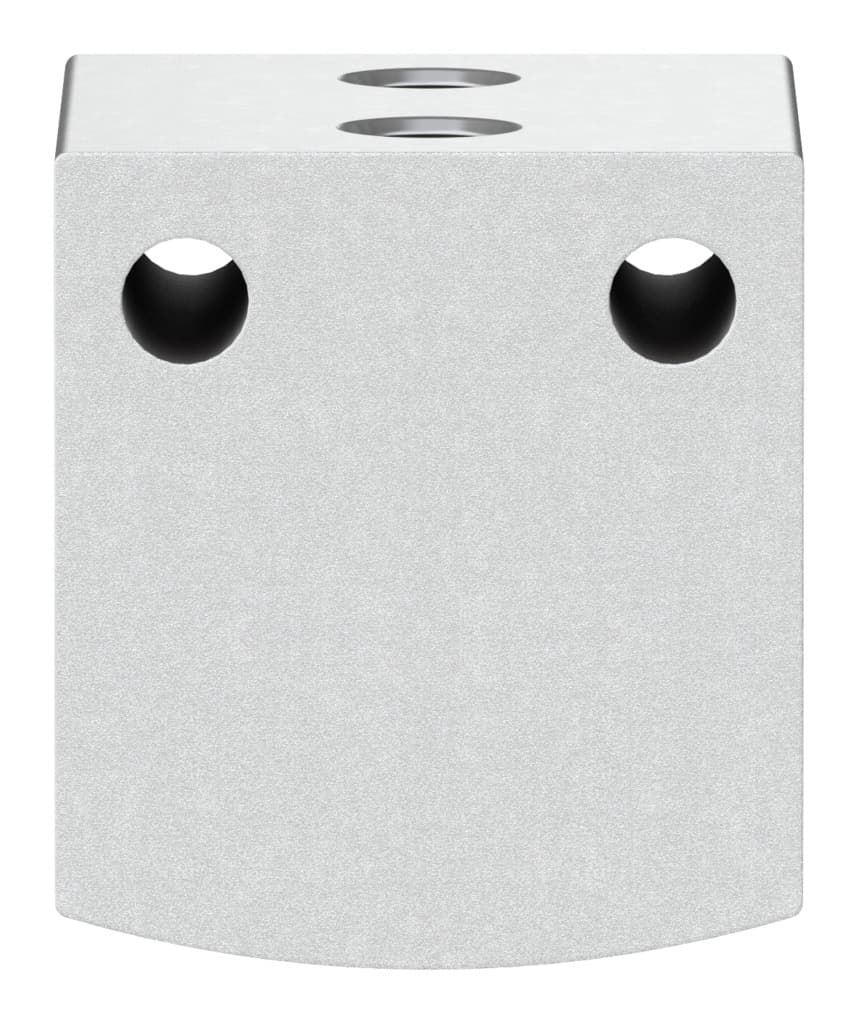

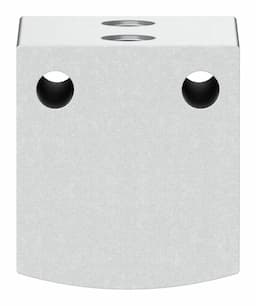

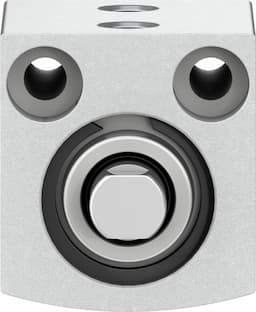

advc-12-5-p
Product ID:9314
Updated: 2026/4/3
Key Features
- 1Utilize a 12mm piston and 5mm stroke for compact, precise actuation. 2、Operate with ISO 8573-1:2010 [7:4:4] compressed air for reliable performance. 3、Achieve 68 N advance force at 6 bar for controlled double-acting movement. 4、Reduce impact with elastic cushioning rings for smoother operation. 5、Withstand -20°C to +80°C and corrosion class 1 for harsh environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 12 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | None | Symbol | 00991227 |
| Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 68N |
| Moving mass | 6.6g | Product weight | 29g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 530568 |
Specifications may be subject to change without notice
