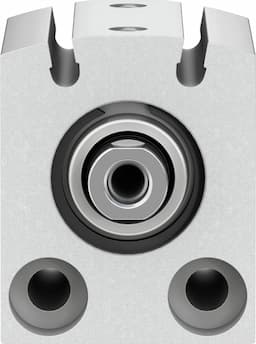

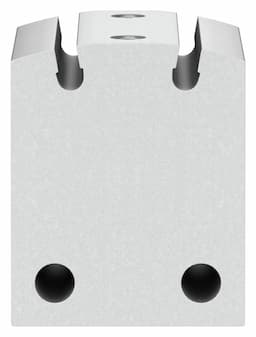

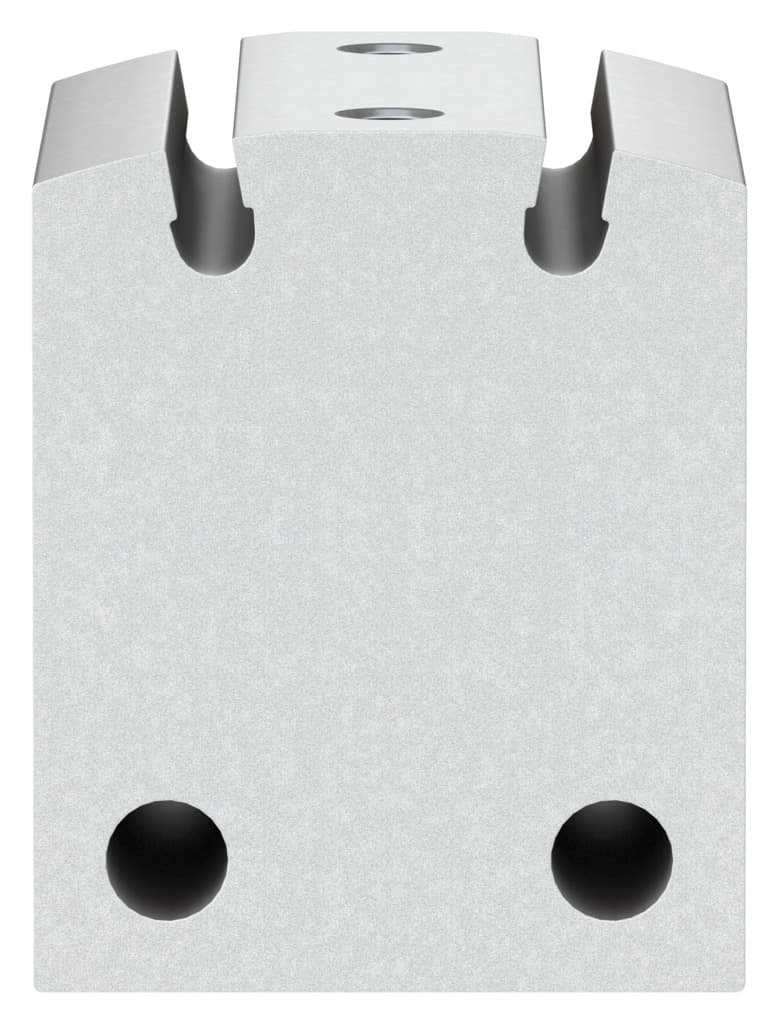

advc-20-10-i-p-a
Product ID:6279
Updated: 2026/4/3
Key Features
- 1Achieve precise movements with a 10 mm stroke and 20 mm piston diameter. 2、Ensure smooth operation via elastic cushioning rings at both ends. 3、Enable extension and retraction using double-acting operation. 4、Operate reliably with compressed air meeting ISO 8573-1:2010. 5、Resist corrosion in various environments with CRC 1 rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Operating pressure | 14.5psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 141N | Theoretical force at 6 bar, advancing | 189N |
| Moving mass | 29g | Moving mass at 0?mm stroke | 23g |
| Additional moving mass per 10?mm stroke | 6g | Product weight | 130g |
| Basic weight with 0?mm stroke | 105g | Additional weight per 10?mm stroke | 30g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188141 |
Specifications may be subject to change without notice
