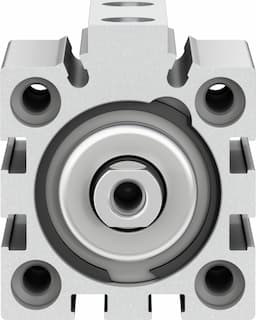

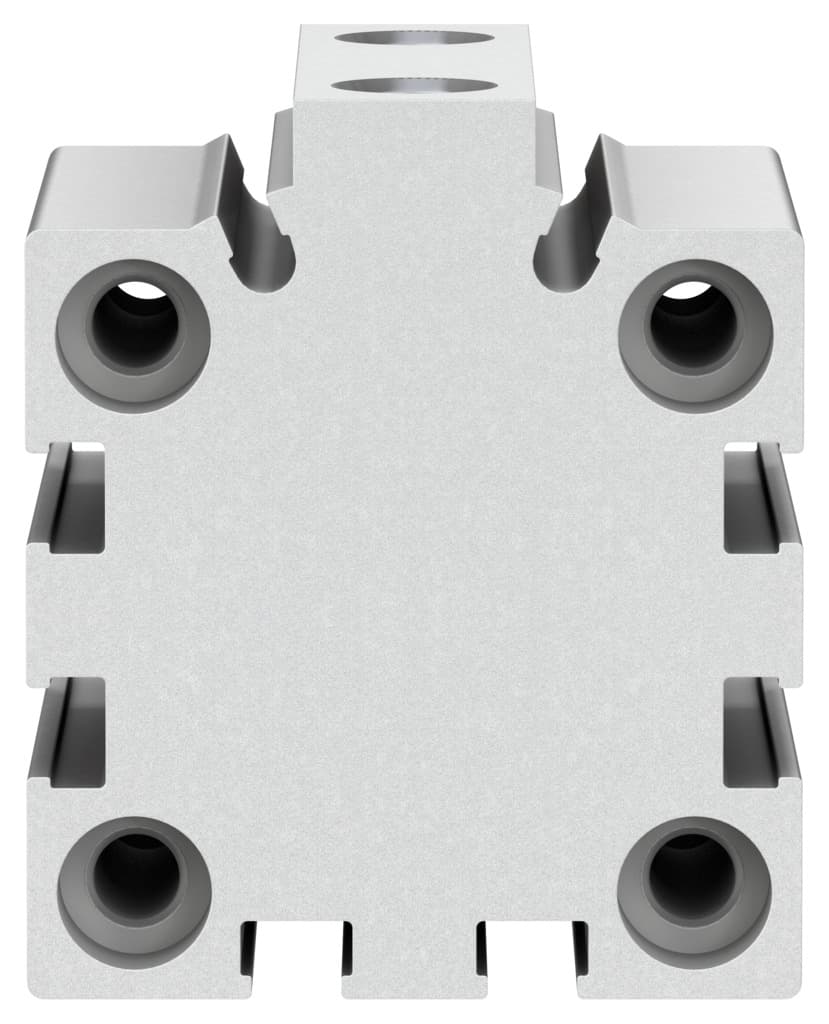

advc-32-15-i-p-a
Product ID:6344
Updated: 2026/7/7
Key Features
- 1Optimize space with a compact 15 mm stroke design.
- 2Generate 483 N of force at 6 bar for demanding tasks.
- 3Ensure durability with aluminum housing and steel piston rod.
- 4Install flexibly using optional through-hole or accessory mounts.
- 5Reduce wear via TPE-U seals for lubricated operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 32 mm |
| Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 483N | Moving mass | 60g |
| Moving mass at 0?mm stroke | 45g | Additional moving mass per 10?mm stroke | 10g |
| Product weight | 203g | Basic weight with 0?mm stroke | 166g |
| Additional weight per 10?mm stroke | 90g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188206 |
Specifications may be subject to change without notice
