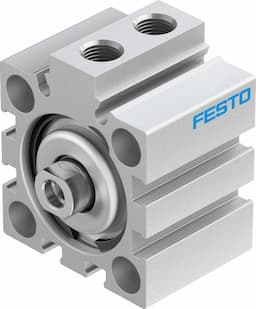

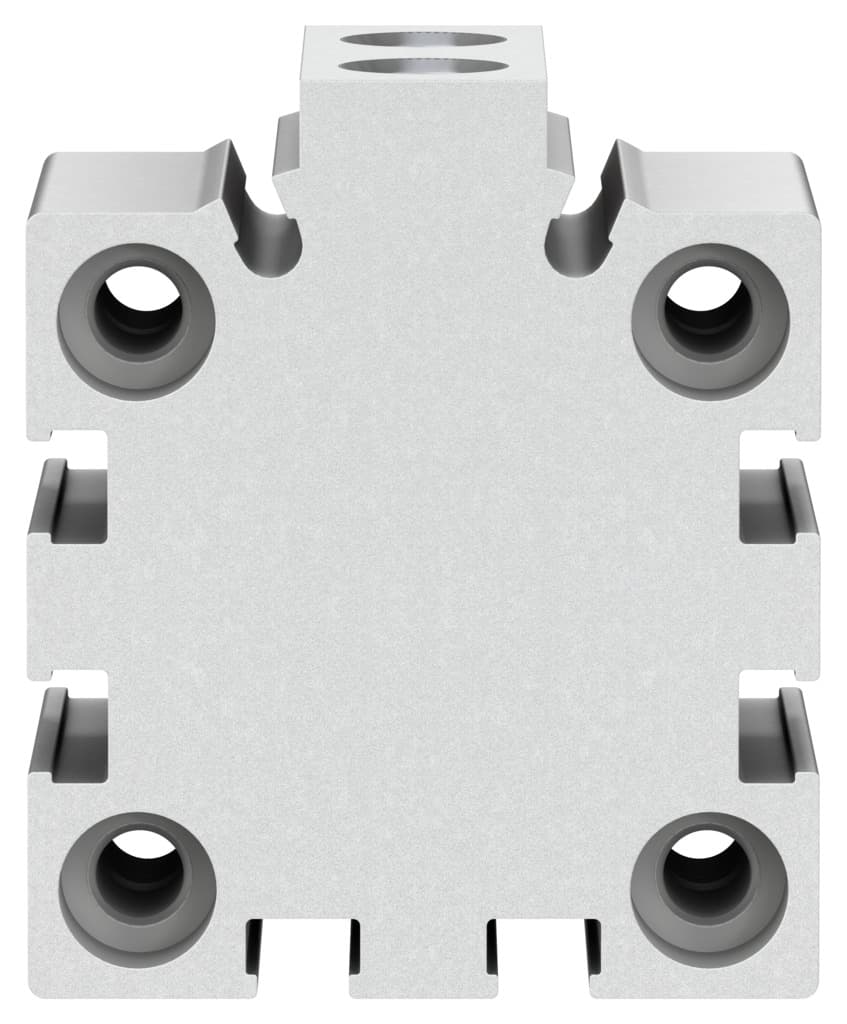

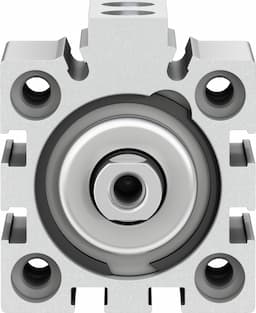

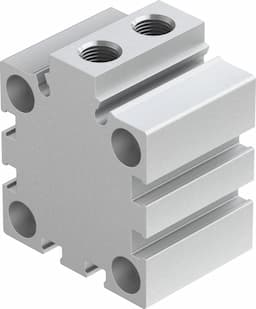

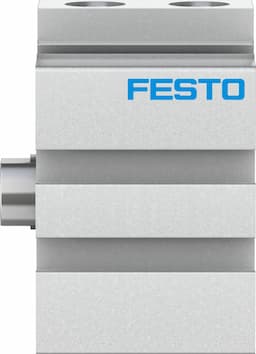

advc-32-5-i-p
Product ID:6347
Updated: 2026/4/3
Key Features
- 1Offer precise control with double-acting operation and proximity sensing. 2、Equip with flexible cushioning rings at both ends for smooth operation. 3、Construct from high-quality wrought aluminum alloy and high-alloy steel. 4、Operate effectively from -20°C to +80°C with 1.5 to 8 bar pressure. 5、Mount via through-holes or accessories for versatile integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 32 mm |
| Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991227 | Operating pressure | 14.5psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 415N |
| Theoretical force at 6 bar, advancing | 483N | Moving mass | 46g |
| Moving mass at 0?mm stroke | 41g | Additional moving mass per 10?mm stroke | 10g |
| Product weight | 157g | Basic weight with 0?mm stroke | 155g |
| Additional weight per 10?mm stroke | 82g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188209 |
Specifications may be subject to change without notice
