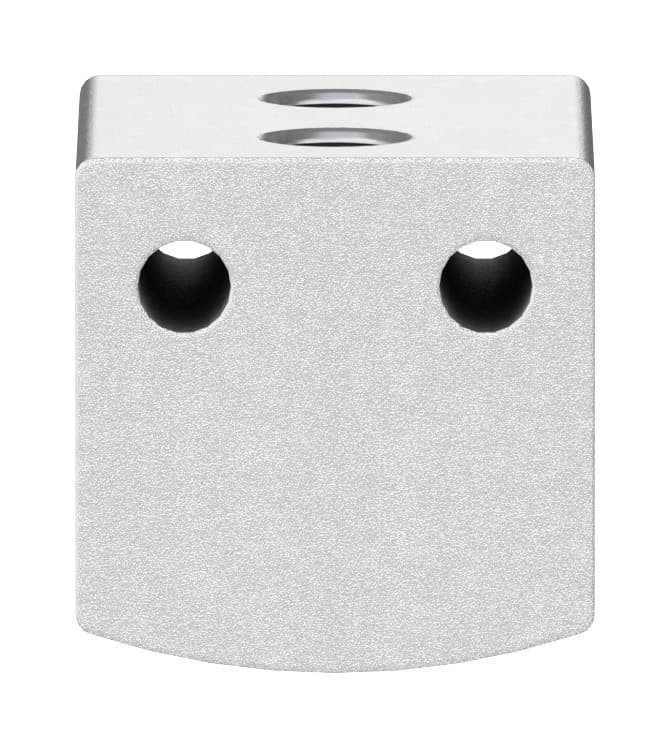

advc-4-2,5-p
Product ID:9022
Updated: 2026/4/3
Key Features
- 1Utilize a compact 4mm piston and 2.5mm stroke for precise movement in tight spaces. 2、Operate with double-acting compressed air per ISO 8573-1:2010 for reliable performance. 3、Benefit from elastic silencer rings that reduce noise and enhance system stability. 4、Achieve efficient motion with 7.5 N force at 6 bar and a low moving mass of 0.20g. 5、Deploy in various environments with corrosion resistance and a -20°C to 80°C range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 2.5mm | Piston diameter | 4 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | None | Symbol | 00991227 |
| Operating pressure | 29psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 5.7N | Theoretical force at 6 bar, advancing | 7.5N |
| Moving mass | 0.2g | Product weight | 3g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | Wrought aluminum alloy Anodized | Manufacturer ID | 526897 |
Specifications may be subject to change without notice
