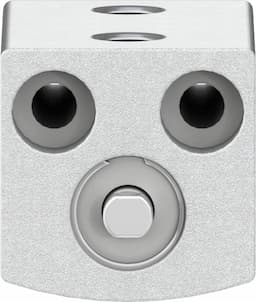

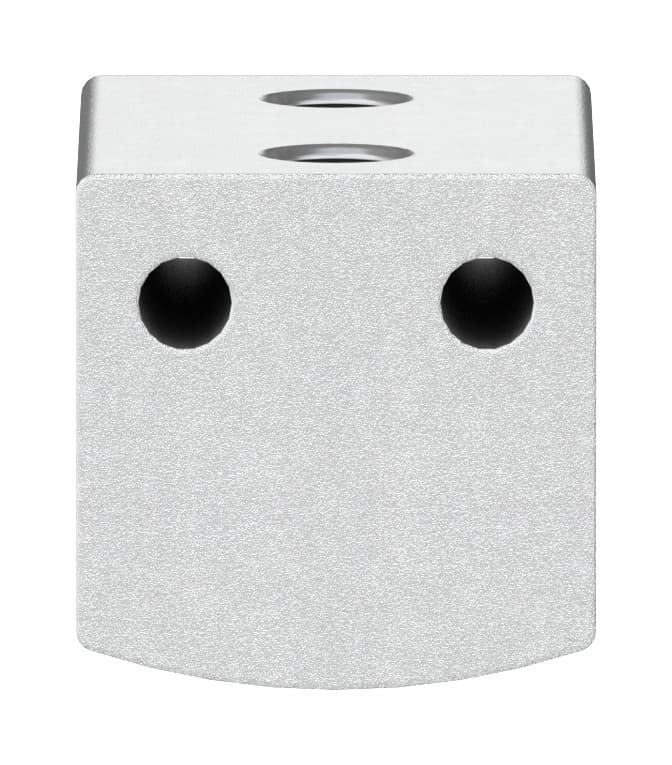

advc-4-5-p
Product ID:9023
Updated: 2026/7/16
Key Features
- 1Engineer high-precision motion with a 5mm stroke and ±0.1mm repeatability.
- 2Minimize space usage in compact pneumatic systems.
- 3Reduce shock loads and extend lifespan via elastic cushioning rings.
- 4Install flexibly with support for any mounting position.
- 5Ensure reliable operation from -20°C to 80°C per ISO standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 4 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | None | Symbol | 00991227 |
| Operating pressure | 29psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 5.7N | Theoretical force at 6 bar, advancing | 7.5N |
| Moving mass | 0.25g | Product weight | 4.2g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | HNBR NBR | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | Wrought aluminum alloy Anodized | Manufacturer ID | 526898 |
Specifications may be subject to change without notice
