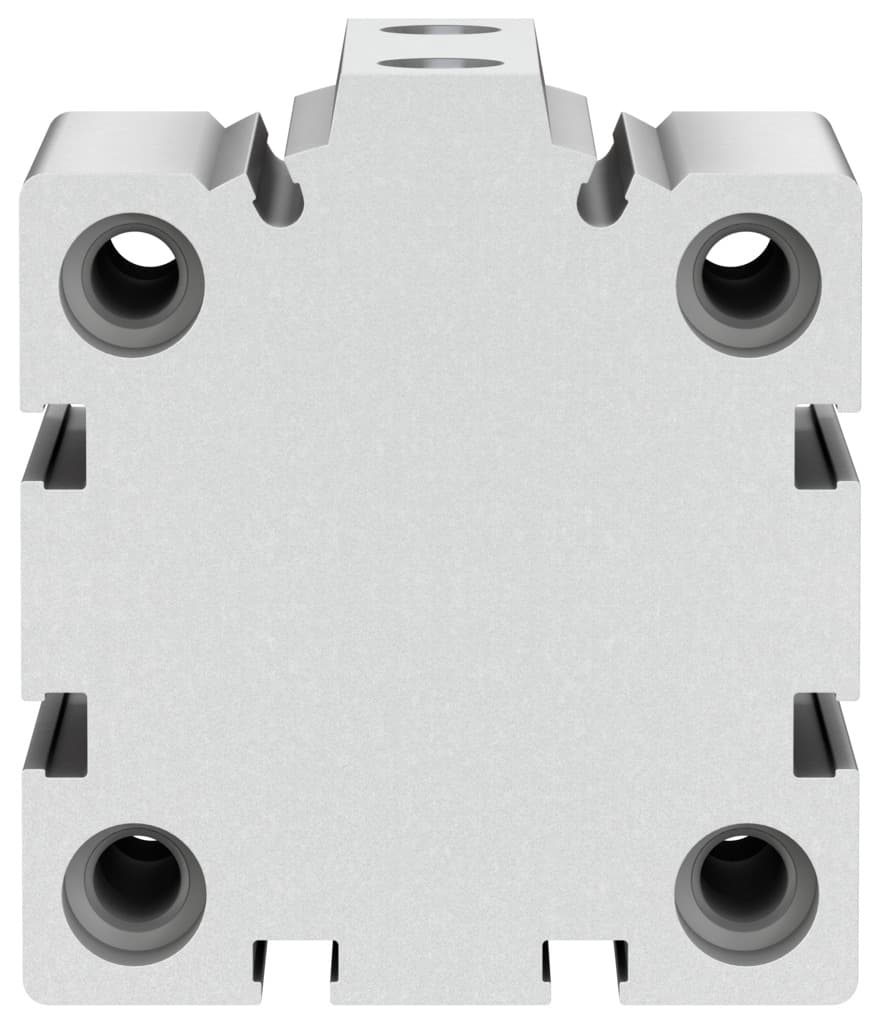

advc-50-20-a-p
Product ID:6412
Updated: 2026/4/3
Key Features
- 1Meet ISO 6431 and VDMA 24562 standards for precision. 2、Feature elastic cushioning rings for smooth operation. 3、Install in any position for flexible mounting. 4、Integrate with proximity sensors for detection. 5、Operate with filtered air for reliable performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 50 mm |
| Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991227 | Operating pressure | 8.7psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 1057N |
| Theoretical force at 6 bar, advancing | 1178N | Moving mass | 135g |
| Moving mass at 0?mm stroke | 111g | Additional moving mass per 10?mm stroke | 16g |
| Product weight | 447g | Basic weight with 0?mm stroke | 357g |
| Additional weight per 10?mm stroke | 62g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188274 |
