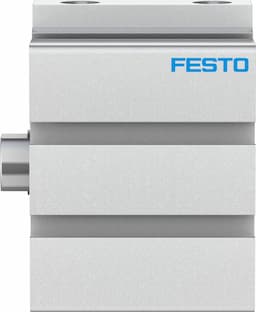

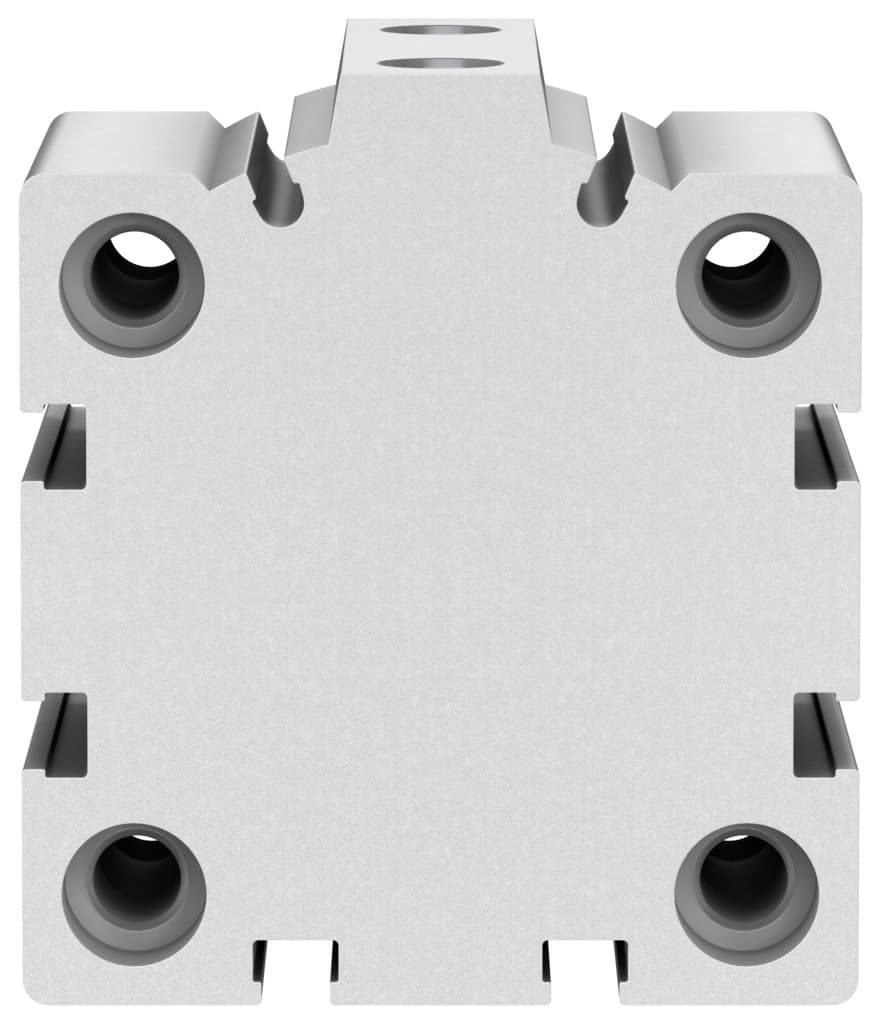

advc-50-20-i-p
Product ID:6404
Updated: 2026/4/3
Key Features
- 1Achieve high precision and accuracy for precise industrial control. 2、Utilize flexible cushioning rings at both ends for smooth operation. 3、Rely on a robust design with a 20 mm stroke and 50 mm piston. 4、Ensure seamless integration with ISO 6431 and VDMA 24562 standards. 5、Optimize double-acting applications without position sensing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 50 mm |
| Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991227 | Operating pressure | 8.7psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 1057N |
| Theoretical force at 6 bar, advancing | 1178N | Moving mass | 135g |
| Moving mass at 0?mm stroke | 111g | Additional moving mass per 10?mm stroke | 16g |
| Product weight | 420g | Basic weight with 0?mm stroke | 357g |
| Additional weight per 10?mm stroke | 62g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188266 |
Specifications may be subject to change without notice
