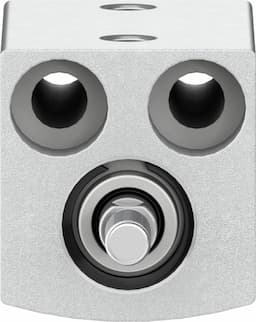

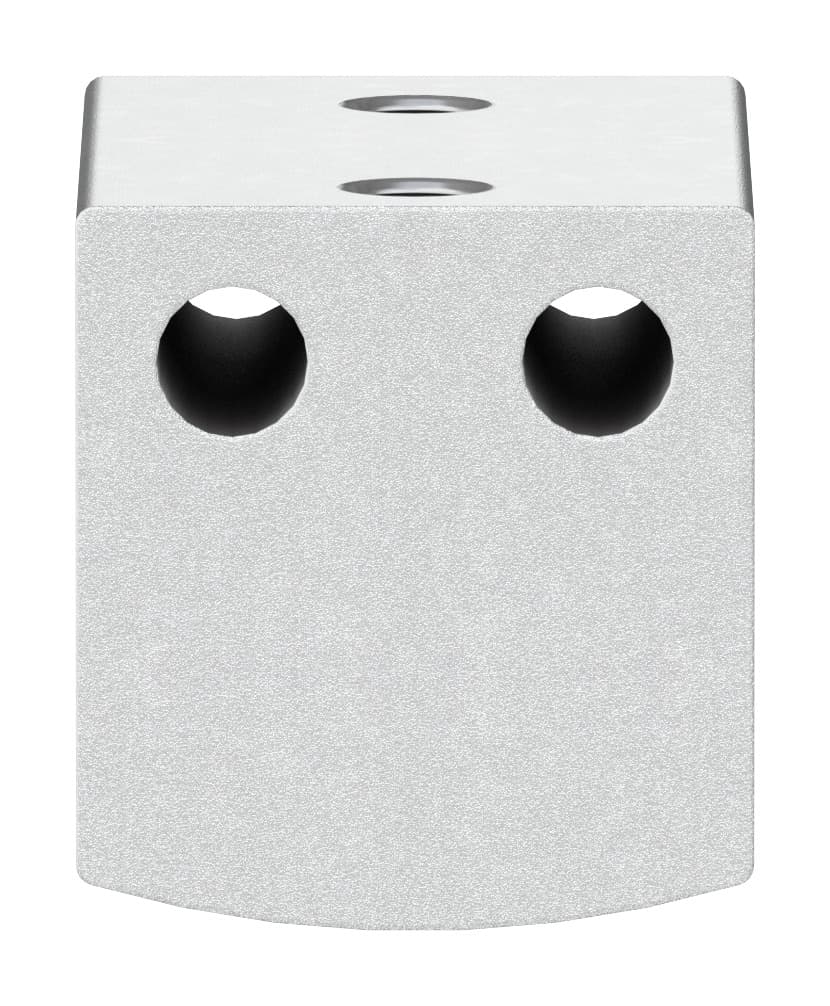

advc-6-10-a-p
Product ID:6207
Updated: 2026/4/3
Key Features
- 1Deliver precise 10mm stroke for controlled movements. 2、Reduce noise with integrated elastic silencer rings. 3、Operate across a versatile 1.5 to 8 bar pressure range. 4、Ensure durability with a high-alloy steel piston rod. 5、Simplify integration using standard M3 pneumatic connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 6 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod |
| Position sensing | None | Symbol | 00991227 |
| Operating pressure | 21.75psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 80°C |
| Theoretical force at 6 bar, retracting | 13N | Theoretical force at 6 bar, advancing | 17N |
| Moving mass | 1.5g | Product weight | 10g |
| Type of mounting | Optionally: With through-hole With accessories | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy Anodized |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy Anodized |
| Piston rod material | High-alloy steel | Manufacturer ID | 188067 |
Specifications may be subject to change without notice
