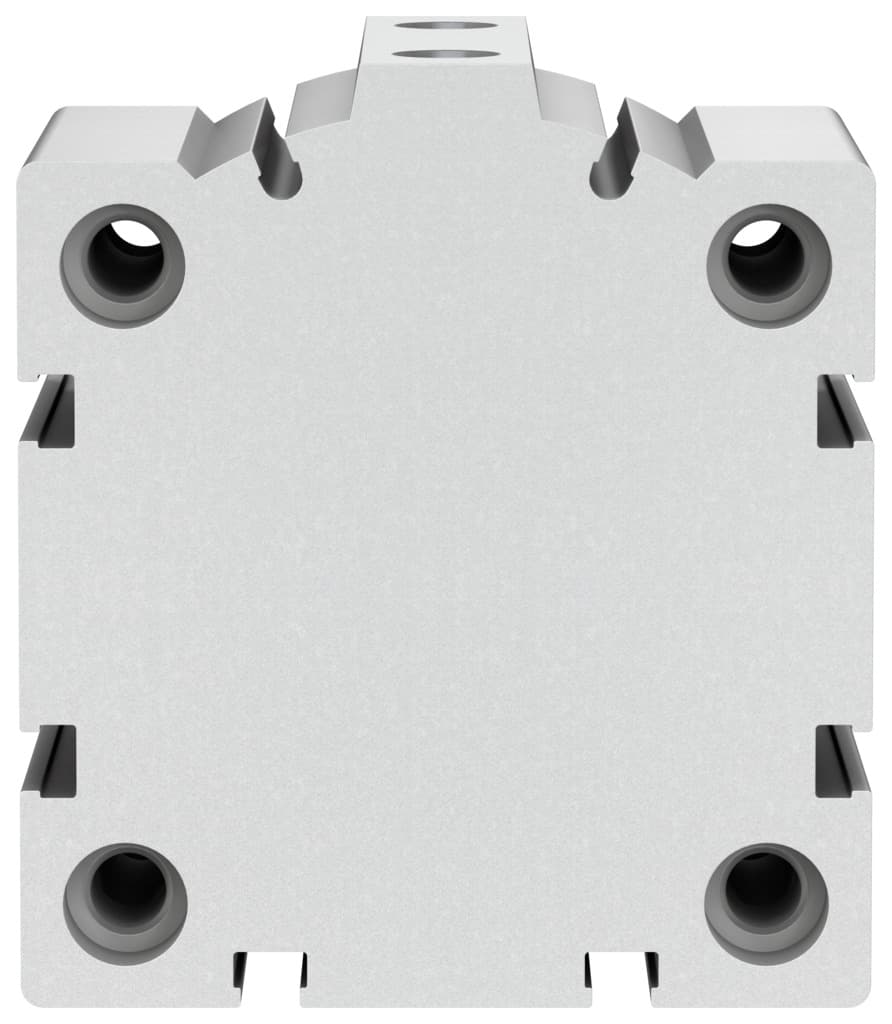

advc-63-20-a-p
Product ID:6436
Updated: 2026/4/3
Key Features
- 1Achieve efficient movement with double-acting operation. 2、Enable precise control using a compact 63mm piston. 3、Ensure durability in environments with low corrosion stress. 4、Operate reliably across a wide -20°C to 80°C temperature range. 5、Benefit from robust construction with aluminum and steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 63 mm |
| Based on norm | ISO 6431 Hole pattern VDMA 24562 | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | None |
| Symbol | 00991227 | Operating pressure | 8.7psi 145psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Theoretical force at 6 bar, retracting | 1750N |
| Theoretical force at 6 bar, advancing | 1870N | Moving mass | 186g |
| Moving mass at 0?mm stroke | 162g | Additional moving mass per 10?mm stroke | 16g |
| Product weight | 704g | Basic weight with 0?mm stroke | 578g |
| Additional weight per 10?mm stroke | 80g | Type of mounting | Optionally: With through-hole With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy Anodized | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy Anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 188298 |
Specifications may be subject to change without notice
